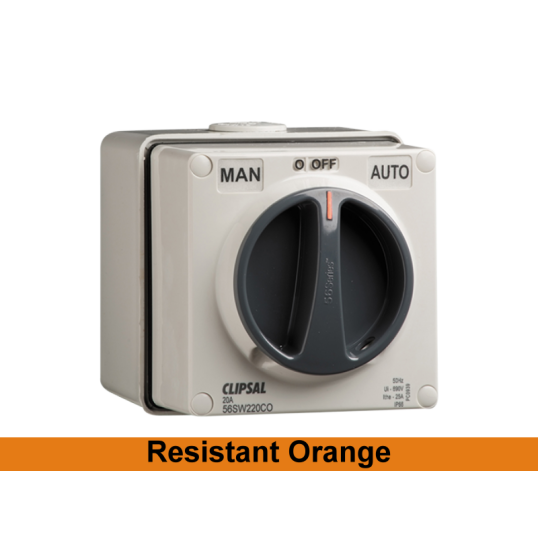

Clipsal 56 Series Changeover Switch Surface Mounting Weatherproof 2P + NP 20A 500V Chemical Resistant Orange IP66
Loading...
Description
Changeover Switch Surface Mounting Weatherproof, 250 Volt AC, 20 Amp, 50 Hz, 1 Gang, 2 Pole + N, 1 Phase, Polycarbonate, Chemical Resistant Orange, IP66, Legend: ON OFF, Rotary Knob, Screw, Surface Mount, 107 mm Height, 101 mm Width, 124 mm Depth, -25 to 75 deg C
Key Specifications
| Barcode (EAN-13) |
9311554072117
|
|---|---|
| SKU |
CLI56SW220CORO
|
| Brand |
Clipsal
|
| Range Name |
56 Series
|
| Product Type |
Changeover Switches
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | 56SW220CO-RO |
| Colour | Chemical Resistant Orange |
| Connection Type | Screw |
| Current | 20 Amp |
| Depth | 124 mm |
| Frequency | 50 Hz |
| Height | 107 mm |
| IP Rating | IP66 |
| Legend | ON OFF |
| Mounting Method | Surface |
| Method of Operation | Rotary Knobs |
| Number Of Poles | 2 Pole |
| Number Of Gangs | 1 Gang |
| Temperature | -25 to 75 deg C |
| Voltage | 250 Volt |
| Width | 101 mm |
