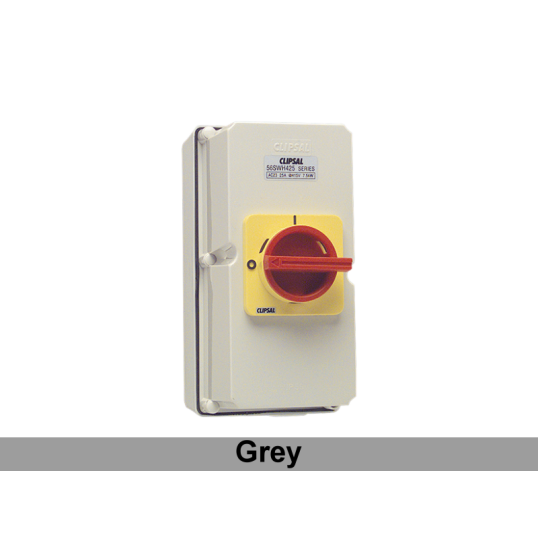

Clipsal 56 Series Load-Break Switch Enclosed 3P 40A AC21 11 kW AC23 Surface Mount IP66
Loading...
Description
Load-Break Switch Enclosed, 500 Volt AC, 40 Amp, AC21 Rating: 40 Amp @ 690 Volt, AC23 Rating: 25 Amp @ 690 Volt, 11 kW @ 690 Volt, 3 Pole, Cable Size: 1.5-16 mm, Screw, IP66, Surface Mount, Polycarbonate, Deep Grey, -25 to 75 deg C, 204 mm Height, 101 mm Width, 172 mm Depth, Enclosed
Key Specifications
| Barcode (EAN-13) |
9318794037586
|
|---|---|
| SKU |
CLI56SWH340GY
|
| Brand |
Clipsal
|
| Range Name |
56 Series
|
| Product Type |
Load-Break Switches
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | 56SWH340-GY |
| AC23 Rating | 25 Amp 11 kW @ 690 Volt |
| AC21 Rating | 40 Amp AC21 @ 690 Volt |
| Cable Size | 1.5-16 sq-mm |
| Colour | Deep Grey |
| Current | 40 Amp |
| Connection Type | Screw |
| Depth | 172 mm |
| IP Rating | IP66 |
| Height | 204 mm |
| Please Note | Enclosed |
| Temperature | -25 to 75 deg C |
| Voltage | 500 Volt AC |
| Width | 101 mm |
