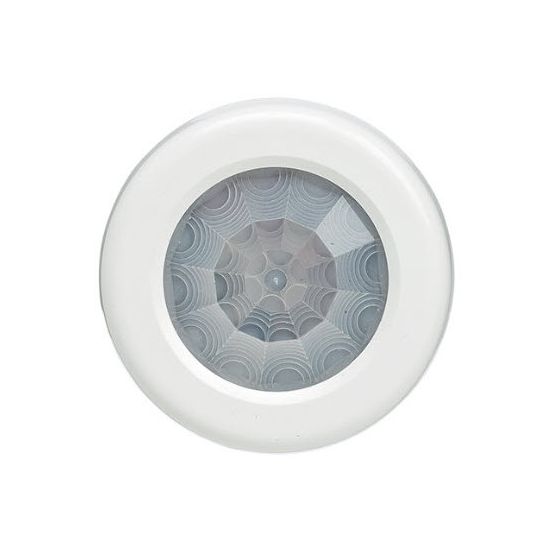

Clipsal C-Bus PIR Occupancy Sensor Indoor Flush Mount 360deg White

Description

PIR Occupancy Sensor, 18 mA, PIR Sensing Method, Lateral: 7.5 mtr/Frontal: 7.5 mtr Sensing Range, 360 deg Sensing Beam, 2.4 mtr Mounting Height, Flush Mounting, Plastic, White

Key Specifications

Barcode (EAN-13)	9311554549428
SKU	CLI5753LWE
Brand	Clipsal
Range Name	C-Bus
Product Type	Sensors

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Flush mount, 360 deg, ceiling mount PIR motion detector Suitable for indoor use The unit has a coverage range of 6 mtr x 6 mtr and a field of view of 360 deg The unit features a light threshold adjustment on the unit The time delay is programmable in the range 1 sec-18 hrs Features a sunset switch program Draws 18mA from a C-Bus network Creep zone protection Light sensitivity adjustable 1 channel
Standard Pack Size	1
UNSPSC Class	39121800
UOM	EA
Vendor Product	5753L
Colour	White
Current	18 mA
Mounting Height	2.4 mtr
Mounting Method	Flush
Material	Plastic
Sensing Beam	360 deg
Sensing Range	Lateral: 7.5 mtr / Frontal: 7.5 mtr
Sensing Method	PIR
