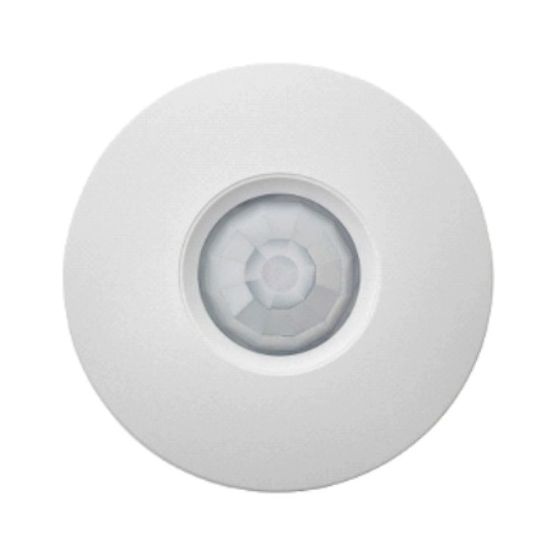

Clipsal C-Bus Occupancy & Light Level Sensor Passive Infrared Surface Mount 360deg White

Description

PIR Occupancy Sensor, PIR Sensing Method, Lateral: 4.85 mtr/Frontal: 4.85 mtr Sensing Range, 360 deg Sensing Beam, 2.7 mtr Mounting Height, Surface Mounting, Plastic, White

Key Specifications

Barcode (EAN-13)	9311554749217
SKU	CLI5754ODPE
Brand	Clipsal
Range Name	C-Bus
Product Type	Sensors

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Mounting solution suits surface mount applications Quickly mounts on solid surfaces such as masonry or wood Low-profile surface mount design - extends only 33 mm from the mounting surface Uses passive infrared (PIR) detection with manually adjustable sensitivity to motion Software programmable time delay Motion detection coverage typically 7.6 mtr diameter (at 2.7 mtr mounting height) C-Bus control of light level target, light level margin, high/low lux levels and high/low thresholds Bank switching of lighting levels based upon the light level set point Daylight Harvesting to maintain a constant user-configured light level Creep zone protection
Standard Pack Size	1
UNSPSC Class	39121800
UOM	EA
Vendor Product	5754ODPE
Colour	White
Mounting Height	2.7 mtr
Mounting Method	Surface
Material	Plastic
Sensing Beam	360 deg
Sensing Range	Lateral: 4.85 mtr / Frontal: 4.85 mtr
Sensing Method	PIR
