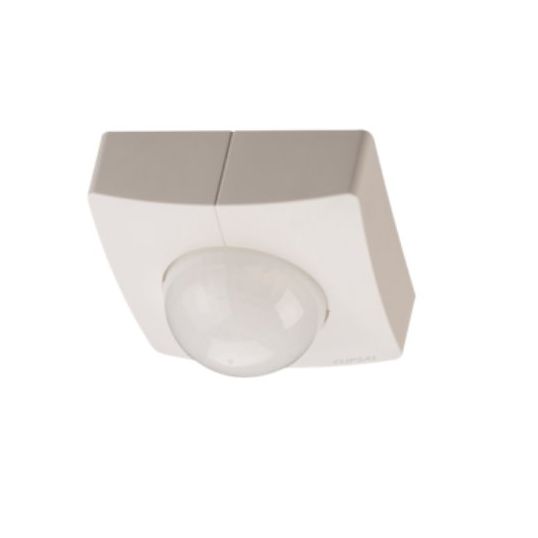

Clipsal Passive infrared Motion Detector 360deg 2.5M 3 Wire 10A 200-265V IP54 White Electric Surface Mount

$Clipsal\Clipsal_753SSR.jpg$

Description

This Infrascan motion sensor is a 3-wire motion sensor with a maximum load handling of 10 Amp. The detection range of this motion sensor is 24m diameter with an angle of 360 deg (ceiling installation at 2.5m height). The delay time can be adjusted between 5 seconds and 15 minutes.

Key Specifications

Barcode (EAN-13)	9311554752699
SKU	CLI753SSRWE
Brand	Clipsal
Product Type	Motion Detectors

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	753SSR-WE-NLA
Colour	White
Current	10 Amp
Detection Angle	360 deg
Detection Distance	2.5 mtr
Intensity	2-2000 Lux
Height	65 mm
IP Rating	IP54
Mounting Method	Surface
Temperature	-20 to 50 deg C
Voltage	200-265 Volt
Width	95 mm
