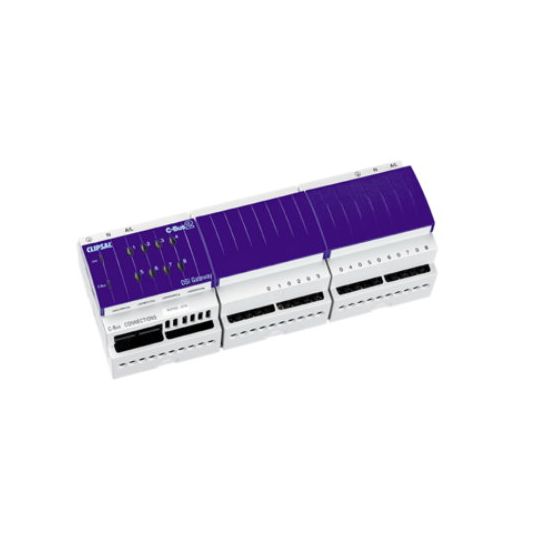

Clipsal C-Bus DIN Rail Dimmer 8 Channel 240V 270mA with Power Supply For DSI Ballast

Description

DIN Rail Dimmer, Dimmer: 220-240 Volt AC, C-Bus: 15-36 Volt DC, Total: 270 mA, Per Channel: 200 mA, Frequency: Network: 47-53 Hz, 57-63 Hz, Number of Channels: 8, Number of Outputs: 100 Per Channel, Number of Modules: 12, Connector Type: RJ45 for C-Bus, RJ45 for Remote Override, Network Type: C-Bus, Load Type: DSI Ballast, Mounting Method: DIN Rail, Temperature: 0 to 45 deg C, Dimensions: 215mm Width x 85mm Height x 65mm Depth

Key Specifications

Barcode (EAN-13)	9311554528003
SKU	CLIL5508DSI
Brand	Clipsal
Product Type	Dimmers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	8-channel dimmer for DSI ballasts, DIN rail-mounted 12M DIN modules wide Provides C-Bus control of electronic DSI digital ballasts The module controls up to 100 DSI ballasts per channel Up to 10 units may be connected to any C-Bus network Used in conjunction with electronic DSI ballasts The dimmer features a 200mA C-Bus power supply C-Bus Learn Enabled
Standard Pack Size	1
UNSPSC Class	39121800
UOM	EA
Vendor Product	L5508DSI
Channels	8 Channel
Dimensions	215 mm Width x 85 mm Height x 65 mm Depth
Frequency	Network: 47-53 Hz/57-63 Hz
Current	Total: 270 mA/Per Channel: 200 mA
Load Type	DSI Ballast
Mounting Method	DIN Rail
Network Type	C-Bus
Temperature	0-45 deg C
