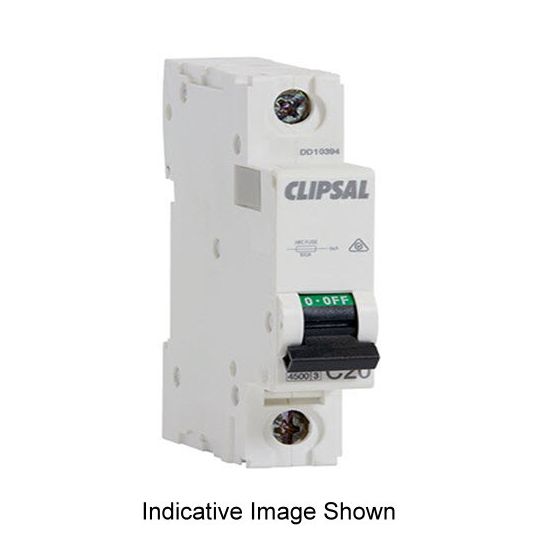

Clipsal ResiMax Miniature Circuit Breaker C Curve 63Amp 4.5 kA 1Pole 1Module 18mm DIN Rail Mount

Description

Miniature Circuit Breaker C Curve, 240 Volt, 63 Amp, 50/60 Hz, 4.5 kA Interrupt Capacity, 1 Module 18 mm, 1 Pole, 1 Phase Phase, 3.5 Nm Tightening Torque, 10000 Cycles Electrical Life, IP20/40, DIN Rail Mounting, 25 to 70 deg C, 81 mm Height, 18 mm Width, 78.5 mm Depth

Key Specifications

Barcode (EAN-13)	9318795018393
SKU	CLIMCB4-163
Brand	Clipsal
Range Name	Resi MAX
Product Type	Mini Circuit Breakers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Unique new white finish for a fresh modern look Standard characteristic is C-Curve suits most applications Base module = 18 mm wide compact standardised and consistent module dimension Lift-up terminals Safer no hot spot terminations and all cable strands are locked in Combination head screws, choice of screwdrivers 4. 5, 6 and 10 kA units are also fitted with bottom cog rail terminals which provides easier and faster installation with bus bars Field fitted auxiliary switches, standard units for any application Field fitted shunt trips, standard units for any application
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	MCB4-163
Current	63 Amp
Depth	78.5 mm
Electrical Life	10000 Cycles
Frequency	50/60 Hz
Height	81 mm
Interrupt Capacity	4.5 kA
IP Rating	IP20/40
Modules	1 Module 18 mm
Mounting Method	DIN Rail
Number Of Poles	1 Pole
Phase	1 Phase
Temperature	25 to 70 deg C
Tightening Torque	3.5 Nm
Voltage	240 Volt
Width	18 mm
