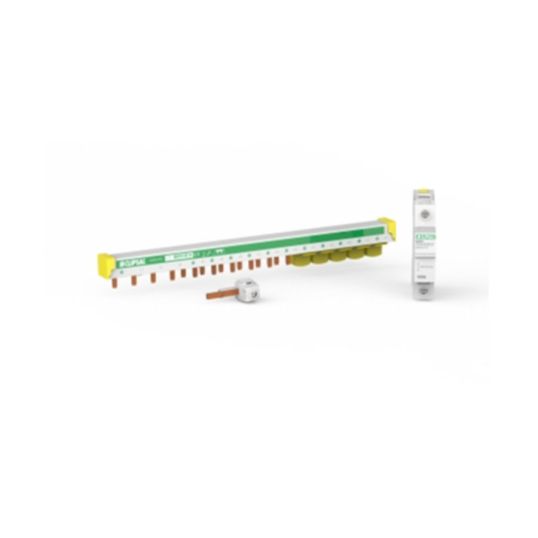

Clipsal Busbar 100Amp 3 + N Pole 15 Module

Description

MAXBAR is slim type top feed comb bus bar for row with incomer The rated current is 100 Amp. It is 3P+N and 15 modules. Comb bus bar mounting mode is horizontal and cuttable. The provided equipment's are connector, neutral terminal block and tooth covers. It is dedicated to residential market. The Ue rated operational voltage is 230 Volt AC or 415 Volt AC. The Ui rated insulation voltage is 500 Volt. The dimensions are 324 mm Width x 50 mm Height x 45 mm Depth. Colour is white electric (RAL9003). The comb bus bar colour is white electric (RAL9003)

Key Specifications

Barcode (EAN-13)	9311554814670
SKU	CLIMX9B315N
Brand	Clipsal
Range Name	Max9

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Up to 15 times faster compared to traditional wiring method MAX Professionalism - No cables for feeding RCBOs MAX Performance - 100 Amp rated Bus bar, connector, teeth cover, end caps, terminal block MAX Flexibility
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	MX9B315N
Current	100 Amp
Colour	White
Please Note	15 Modules
Product Type	simple
Number Of Poles	3 Pole
Voltage	400 Volt AC
