Name: Contactor 25A 240V AC 1NO
SKU: CLIMX9C112510
Availability: InStock

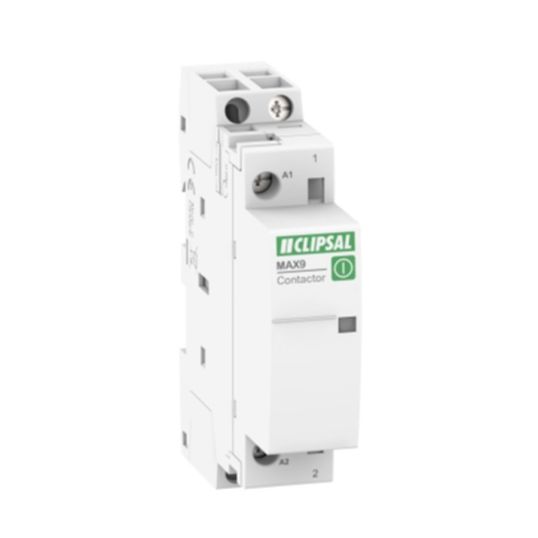

This MAX9 product is a modular contactor. It is a 1P modular contactor with 1 normally open contact. The rated current is 25A for AC-7a. The Ue rated operational voltage is 240VAC. The Uc control voltage is 240VAC. This device could be used for control circuits. This device could be used for remote switching small motors (fans, mixers) or HVAC system applications. This product is compliant with IEC/EN 61095 standard. The MAX9 is targeted to residential for individual and collective buildings. It has an electrical endurance going up to 100000 cycles and a mechanical endurance going up to 1000000 cycles. The operating frequency is 50Hz. It can be mounted on DIN rail for modular installation. Its width is 2 pitches of 9mm. The product colour is white (RAL9003). The dimensions are (W) 18 mm x (H) 81 mm x (D) 63mm. According to EN 61095 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -5-70 deg C. The storage temperature is -40-70 deg C.

Barcode (EAN-13)

9311554814236

SKU

CLIMX9C112510

Brand

Clipsal

Range Name

Max9

Product Type

Contactors General

Additional Information

Features	Compatible with multiple types of screw-drivers with combination head screws Contact status indication window Installation flexibility with the choice of line connection either from top or bottom Designed for touch Aussie conditions with operating temperature range of -5 deg C to +70 deg C (derating applies) Designed to last with endurance performance of 100K electrical cycles
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	MX9C112510
AC1 Rating (Amps)	25 Amp AC1
AC3 Rating (kW)	1.2 kW AC3
Contact Configuration	1 Normally Opened
Control Circuit Voltage	240 Volt AC
Depth	63 mm
Height	81 mm
IP Rating	IP20
Mounting Method	Clip-on/DIN Rail
Number Of Poles	1 Pole
Temperature	-5 to 70 deg C
Width	18 mm
