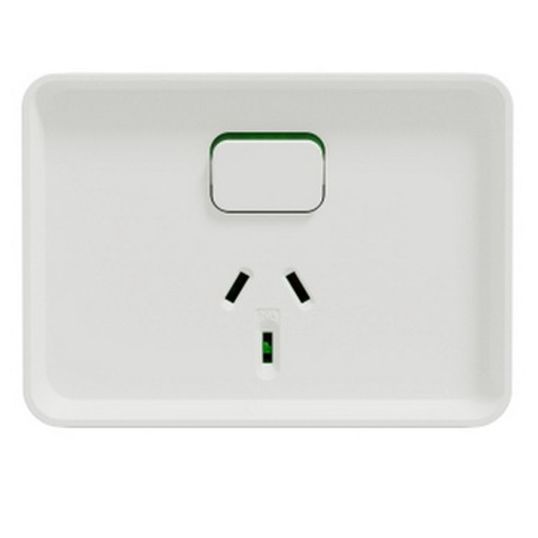

Clipsal Iconic Switched Socket Outlet Single 10Amp 250Volt 1P + E Pole IP54 Matte White

$Clipsal\Clipsal_O3015-XW.jpg$

Description

The Clipsal Iconic Outdoor Single Switched Socket Outlet is rated 10 Amp, 250 Volt. Integrated shutters seal the socket apertures, ensuring the IP54 rating. It has an matt White finish which has been designed for Australian summers and winters.

Key Specifications

Barcode (EAN-13)	9311554811082
SKU	CLIO3015-XW
Brand	Clipsal
Range Name	Iconic
Product Type	GPO Standard

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	The Iconic Outdoor range features an innovative design to ensure your outdoor switches and sockets are kept safe and secure Integrated shutters seal the socket apertures, preventing water ingress and ensuring an IP54 protection rating. The switches are rated IP56 Integrated seals fix onto conduits or cables at entry points, removing the need for additional sealants, and pre-drilled mounting holes are positioned outside of the waterproof area to prevent leaks
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	O3015-XW
Colour	White
Control Type	ON/OFF Button Rocker
Depth	70 mm
Current	10 Amp
Frequency	50 Hz
Height	85 mm
Material	Polycarbonate/ABS/Polyoxymethylene
IP Rating	IP54
Mounting Method	Surface/Wall
Number Of Poles	1 Pole + Earth
Orientation	Horizontal
Pin Configuration	3 Pin
Temperature	0 to 45 deg C
Terminal Capacity	3 x 2.5 sq-mm/2 x 4 sq-mm
Voltage	250 Volt Switch
Width	115.5 mm
