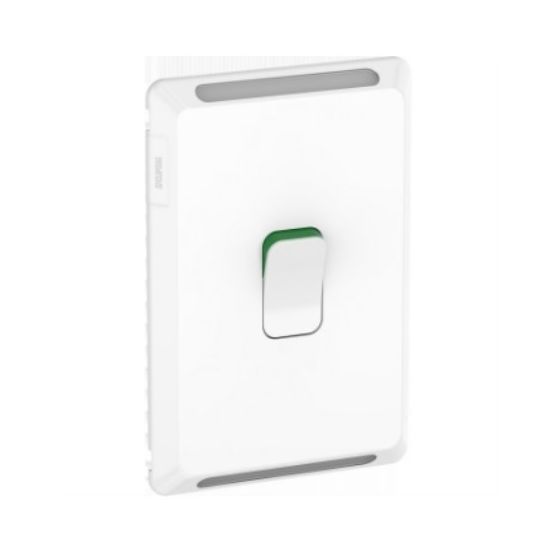

Clipsal Pro Series Switch Wall Mount Rocker 1 Gang 45A 250V 2 Pole 1 Way Horizontal/Vertical Polypropylene White

$Clipsal\Clipsal_P3041D45-XW.jpg$

Description

Switch, 250 Volt Switch, 45 Amp, 2 Pole, 1 Gang, 1 Way, Rocker Switch Actuator, Screw Connection, Horizontal/Vertical Orientation, Wall Mounting, 84 mm Mounting Centres, Polycarbonate/Polypropylene/ABS/Polyoxymethylene, White, Glossy, 0 to 45 deg C, 116 mm Height, 78 mm Width, 38 mm Depth

Key Specifications

Barcode (EAN-13)	9311554805005
SKU	CLIP3041D45XW
Brand	Clipsal
Range Name	Pro Series
Product Type	Switches Standard

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Marked with cooker on rocker Integrated locking bar minimises the possibility of module pushbacks Secure skins No screws needed Clear window protects the circuit identification labels
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	P3041D45-XW
Actuator Type	Rocker Switch
Colour	White
Connection Type	Screw
Current	45 Amp
Depth	38 mm
Finish	Gloss
Height	116 mm
Material	Polycarbonate/Polypropylene/ABS/Polyoxymethylene
Mounting Centres	84 mm
Mounting Method	Wall
Number Of Gangs	1 Gang
Number Of Poles	2 Pole
Number Of Ways	1 Way
Orientation	Horizontal/Vertical
Temperature	0 to 45 deg C
Voltage	250 Volt Switch
Width	78 mm
