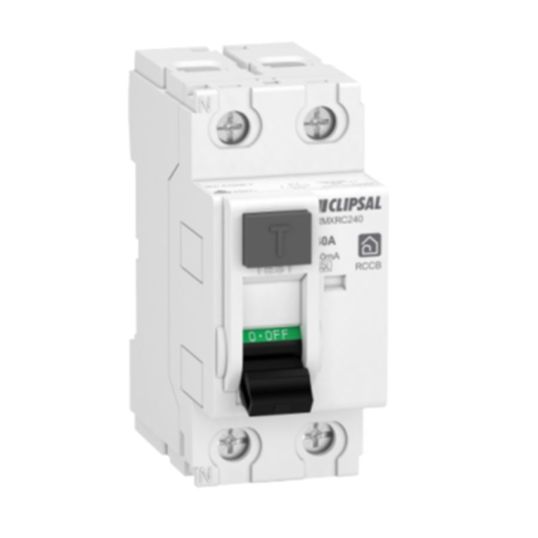

Clipsal Resi MAX Residual Current Circuit Breaker 2 Pole 240V 40A 30 mA IP20/IP40 White

$Clipsal\Clipsal_RMXRC240.jpg$

Description

Residual Current Circuit Breaker, 240 Volt, 40 Amp, 50 Hz, 6 kA Interrupt Capacity, 30 mA Trip Sensitivity, 2 Pole, Tunnel Terminal, IP20/40, 4000 Cycles Mechanical Durability, 3.5 Nm Tightening Torque, 25 to 40 deg C, 81 mm Height, 36 mm Width, 73 mm Depth

Key Specifications

Barcode (EAN-13)	9311554815936
SKU	CLIRMXRC240
Brand	Clipsal
Range Name	Resi MAX
Product Type	Residual Current Circuit Breakers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	RMXRC240
Depth	73 mm
Current	40 Amp
Frequency	50 Hz
Interrupt Capacity	6 kA
Mechanical Durability	4000 Cycles
IP Rating	IP20/40
Height	81 mm
Number Of Poles	2 Pole
Temperature	25 to 40 deg C
Trip Sensitivity	30 mA
Tightening Torque	3.5 Nm
Terminal Type	Tunnel
Width	36 mm
Voltage	240 Volt
