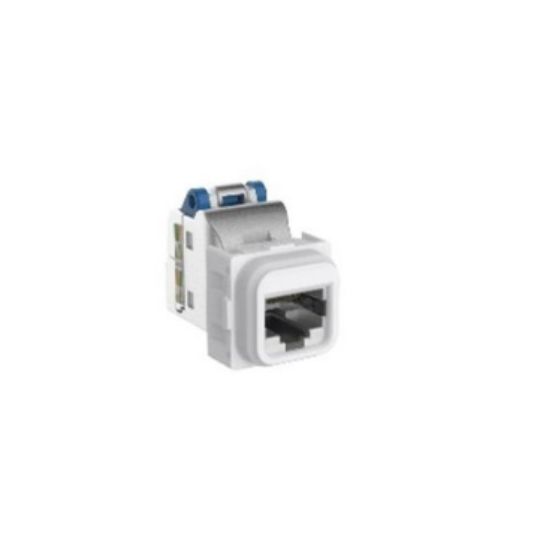

Clipsal Actassi S-One Outlet Mechanism Network Socket Cat6 Shielded RJ45 8 Pin 568A/B Translucent

Description

Outlet Mechanism Network Socket Cat6 Shielded, 1.5 Amp, AWG 23-AWG 24, 0.9-1.4mm Cable Diameter, RJ45 Connector, Cat6A STP Cable, 20 mOhm Contact Resistance, Initial: >= 500 mOhm at 100 VDC Insulation Resistance, 8 Pins, S-One 40 Mech Outlet Mechanism, Wiring Scheme: 568A/B, 750 Cycles Durability, Flammability: UL94-V0 Conforming to UL Listed, ABS + PC Housing, Copper Alloy and Gold Plated Contact Pin, Translucent,-40 to 70 deg C, 35mm Length, 28mm Height, 18mm Width

Key Specifications

Barcode (EAN-13)	9311554792169
SKU	CLIVDIB177AXB10TN
Brand	Clipsal
Range Name	Iconic

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	43223300
UOM	EA
Vendor Product	VDIB177AXB10TN
Cable Type	Cat6A STP
Colour	Translucent
Conductor Size	AWG 23-AWG 24
Connector	RJ45
Contact Resistance	20 mOhm
Current	1.5 Amp
Durability	750 Cycles
Flammability	UL94-V0 Conforming to UL Listed
Height	28mm
Housing Material	ABS
Insulation Resistance	Initial: >= 500 mOhm at 100 VDC
Outlet Type	S-One 40 Mech
Number of Pins	8 Pin
Temperature	-40 to 70 deg C
Width	18mm
Wiring Scheme	568A/B
