Flexible Power Cable 1 Core 150mm 0.6/1kV Copper XLPE/PVC Black

$CMI_Electrical\CMI_CV37225C.jpg$

Description

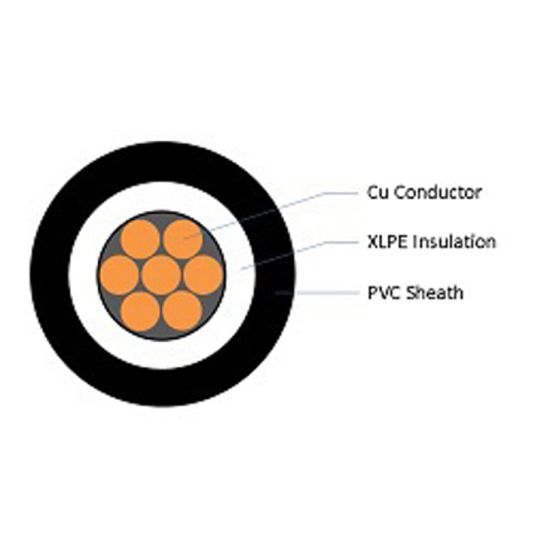

Flexible Cable, 150 mm, Annealed Copper, 0.6-1 kV, 1 Core, 37/2.25 mm Strands, 15.75 mm Nominal Diameter, 22.1 mm Overall Diameter, 1.4 mm Insulation Thickness, 1.6 mm Sheath Thickness, X-90 XLPE Insulation, Natural Insulation, 5V-90 PVC Sheath, Black Sheath, AS/NZS 5000.1

Key Specifications

SKU	CMICV37225C
Brand	CMI
Product Type	Flexible Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121500
UOM	MTR
Vendor Product	CV37225C
Insulation Colour	Natural
Conductor Size	150 mm
Conductor Type	Annealed Copper
Insulation Material	X-90 XLPE
Nominal Diameter	15.75 mm
Insulation Thickness	1.4 mm
Number of Cores	1 Core
Overall Diameter	22.1 mm
Sheath Material	5V-90 PVC
Standards	AS/NZS 5000.1
Sheath Colour	Black
Sheath Thickness	1.6 mm
Stranding	37/2.25 mm
Voltage	0.6-1 kV
