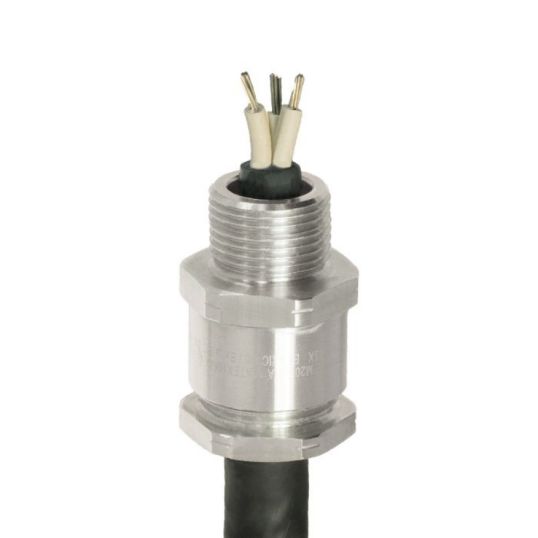

CMP Products Hazardous Area Cable Gland Unarmoured Explosive Atmosphere 8.7-14mm M20 IP66/67/68

$CMP_Products\CMP_20LA2F1001RA5.jpg$

Description

Hazardous Area Cable Gland Unarmoured Flame Proof, M20, 15 mm Thread Length, 8.7 mm Min. Sheath OD, 14 mm Max. Sheath OD, 27 mm Width Across Flats, 29.7 mm Width Across Corners, For Use With Unarmoured and Braid Armour Cables, Ex db, Ex eb, Ex nR, Ex ta, Ex db, 34.3 mm Protrusion Length, IP66/67/68, Brass Body, Thermoset Elastomer Seal, Nickel Plated, -60 to 130 deg C

Key Specifications

Barcode (EAN-13)	5052625263167
SKU	CMP20LA2F1001RA5
Brand	CMP Products
Product Type	Cable Glands Unarmoured Hazardous Area

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	No special conditions for safe use No external cable clamping required Displacement type flameproof seal Deluge protected Complies 100% with IEC 60079-0 cable retention requirements For all types of unarmoured and braided cables
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	20LA2F1001RA5
Body Material	Brass
For Use With	Unarmoured and Braid Armour Cables
Finish	Nickel Plated
Hazardous Area Rating	Ex db Ex eb Ex nR Ex ta Ex db
IP Rating	IP66/67/68
Max. Sheath OD	14 mm
Min. Sheath OD	8.7 mm
Protrusion Length	34.3 mm
Seal Material	Thermoset Elastomer
Temperature	-60 to 130 deg C
Thread Length	15 mm
Thread Size	M20
Width Across Flats	27 mm
Width Across Corners	29.7 mm
