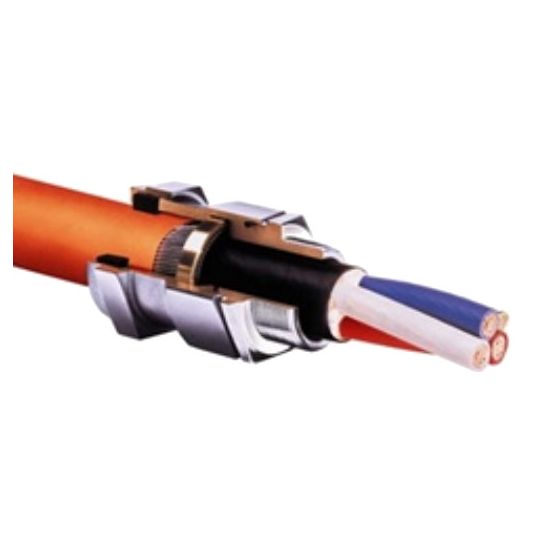

Crouse Hinds Hazardous Area Cable Gland Armoured 43-52.6mm M50 IP66/67

$Crouse_Hinds\Crouse_Hinds_TWAE_Gland.jpg$

Description

Hazardous Area Cable Gland, Armoured, M50, 20 mm Thread Length, 43 mm Min. Sheath OD, 52.6 mm Max. Sheath OD, 41 mm Max. Bedding OD, 2 mm Min. Armour Wire, 2.5 mm Max. Armour Wire, Exe, Ex tD, 69.8 mm Width Across Flats, 80.8 mm Width Across Corners, IP66/67, Brass Body, Nickel Plated Finish, 52.6 mm Overall Length

Key Specifications

Barcode (EAN-13)	9323952097272
SKU	CRUTWAE5M53
Brand	Crouse Hinds
Range Name	Terminator TWAE
Product Type	Cable Glands Hazardous Area

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	For termination of steel wire armoured Cables
Standard Pack Size	5
UNSPSC Class	39121400
UOM	EA
Vendor Product	TWAE5M53
Body Material	Brass
Finish	Nickel Plated
Hazardous Area Rating	Exe Ex tD
IP Rating	IP66/67
Max. Bedding OD	41 mm
Max. Sheath OD	52.6 mm
Overall Length	52.6 mm
Min. Sheath OD	43 mm
Min. Armour Wire	2 mm
Max. Armour Wire	2.5 mm
Thread Size	M50
Width Across Corners	80.8 mm
Width Across Flats	69.8 mm
Thread Length	20 mm
