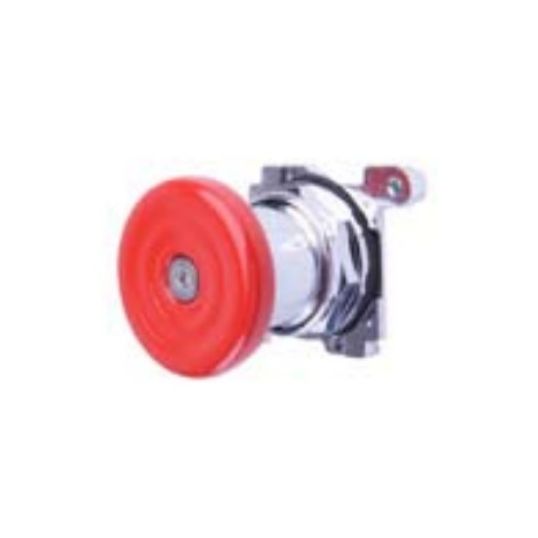

Eaton Cutler Hammer Pushbutton Actuator Only 45mm Mushroom Head Metal Body k Non Illuminated Maintained 30.5mm Panel

Description

Pushbutton Actuator Mushroom Head, Non-Illuminated Maintained Action Operator Action, Mushroom Head, Push-Pull Reset Type, Panel Mounting, 30.5 mm Mounting Diameter, IP66, Zinc Bezel, Red, 30.5 mm, 45 mm Diameter

Key Specifications

Barcode (EAN-13)	9321289325679
SKU	CUTT129M
Brand	Eaton Cutler Hammer
Range Name	T Series
Product Type	P/B Actuators Mushroom

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Die-cast metal housings create robust and heavy duty devices that can endure repetitive and heavy handed use in industrial environment IP66 rated for protection against dirt and moisture The corrosion resistant E34 range can with stand extremely harsh environments Contact blocks are colour coded, green for NO and red for NC to permit easy identification and troubleshooting Up to 6 contact blocks can stack on each other, allowing for up to 12 circuits per operator Heavy duty zinc die cast construction Enclosed silver contacts with reliability nibs All normally closed contacts have positive opening operation, normally closed contacts are forced open in the event of contact weld or spring breakage Diaphragm seals with drainage holes Grounding nibs on the operator casing
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	T129M
Bezel Material	Zinc
Colour	Red
Diameter	45 mm
Head Type	Mushroom
Mounting Diameter	30.5 mm
IP Rating	IP66
Mounting Method	Panel
Operator Action	Non-Illuminated Maintained Action
Reset Type	Push-Pull
Size	30.5 mm
