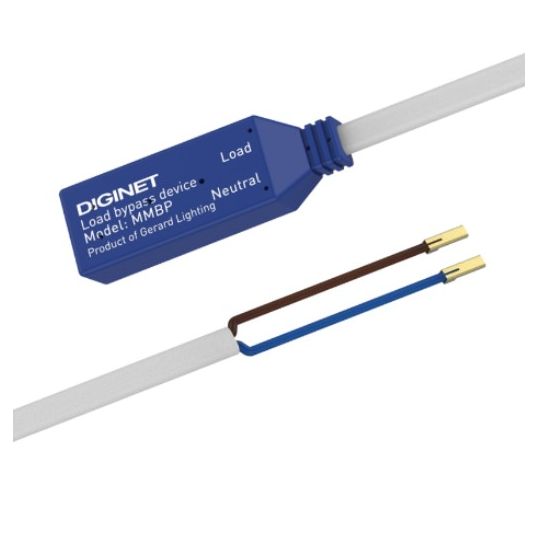

Diginet Load Bypass Device RAPIX 220-240VAC 2mA 100mW

Name: Load Bypass Device RAPIX 2Wire Load/Neutral 220-240VAC 2mA
SKU: DIGMMBP
Availability: InStock

$Gerard_Lighting\GerardLighting_DIGMMBP.jpg$

Description

Load Bypass Device, RAPIX System Type, 220-240 Volt, 2 mA, 100 mW, 2 Core Double Insulated/Crimped Ends Switched Active and Neutral Connection, 70 deg C, 49 mm x 15 mm x 11 mm

Key Specifications

SKU	DIGMMBP
Brand	Diginet
Product Type	Controllers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Allows up to 4 Diginet LED smart Small and light- small and light-weight Line powered - draws only 2 mA from a DALI Line Independent of maximum connected load Supplied with pre-terminated leads Crimped terminations on lead for reliable connection to load Shunts leakage current away from the connected lighting load Intrinsically thermally and electrically safe
Standard Pack Size	1
UNSPSC Class	39121800
UOM	EA
Vendor Product	MMBP
Connection Type	2 Core Double Insulated/Crimped Ends Switched Active and Neutral
Current	2 mA
Dimensions	49 mm x 15 mm x 11 mm
Power Rating	100 mW
System Type	RAPIX
Temperature	70 deg C
Voltage	220-240 Volt
