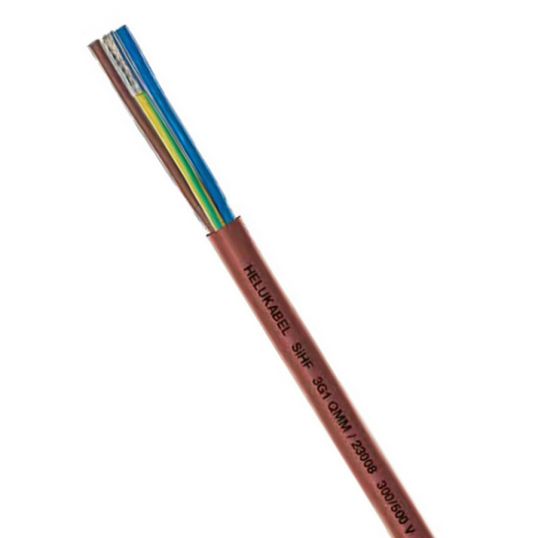

Helukabel 2.5mm 2 Core + Earth Red High Temperature Flexible Wire Double Insulated Silicone Rubber

$Helukable\Helukable_23028.jpg$

Description

Flexible Wire, High Temperature, Double Insulated, 2.5 mm, Class 5 Stranded Copper, 0.3-0.5 kV, 2 Core + Earth, 9.7 mm Overall Diameter, 38.8 mm Static/72.75 mm Flexible Bend Radius, Brown/Blue/Green/Yellow Core, Silicone Rubber Insulation, Silicone Rubber Sheath, Red Sheath, -60 to 180 deg C

Key Specifications

SKU	DKS23028
Brand	Helukabel

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Flame retardant Halogen free
Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	23028
Bend Radius	Static 38.8 mm - Flexible 72.75 mm
Conductor Type	Class 5 Stranded Copper
Conductor Size	2.5 mm
Core Colours	Brown/Blue/Green/Yellow
Insulation Material	Silicone Rubber
Number of Cores	2 Core + Earth
Overall Diameter	9.7 mm
Sheath Material	Silicone Rubber
Sheath Colour	Red
Temperature	-60 to 180 deg C
Voltage	0.3-0.5 kV
