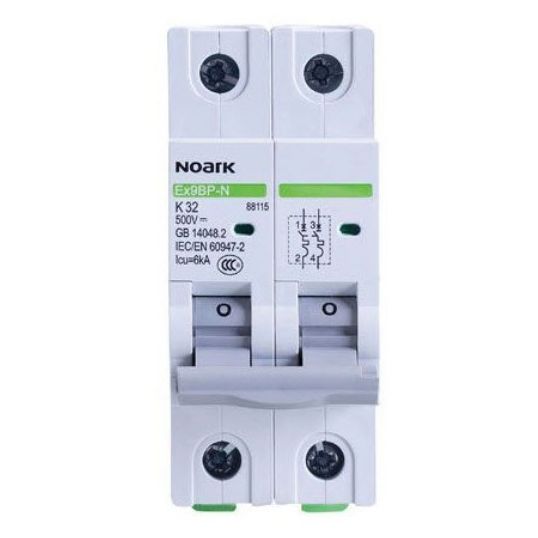

Noark Miniature Circuit Breaker For DC K Curve 6kA 500V 2P DIN 35 Rail

Description

Miniature Circuit Breaker For DC K Curve 500 Volts, 500 Volt AC, 20 Amp, 6 kA Interrupt Capacity, 2 Poles, K Curve Trip Characteristic, IP20/IP40, 2500 (Actual Value), 1500 (Standard Value) Cycles, < 32A 1-25 mm, > 40A 10-35 mm Cable Size, DIN 35 Rail,-20 to 70 deg C, 89mm Height x 36mm Width x 74mm Depth

Key Specifications

SKU	DKS88069
Brand	Noark
Product Type	Mini Circuit Breakers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	N88069
Cable Size	< 32A 1-25 sq-mm / > 40A 10-35 sq-mm
Current	20 Amp
Depth	74 mm
Electrical Life	2500 (Actual Value) / 1500 (Standard Value) Cycles
Height	89 mm
Interrupt Capacity	6 kA
IP Rating	IP20/40
Mounting Method	DIN Rail
Number Of Poles	2 Pole
Temperature	-20 to 70 deg C
Voltage	500 Volt
Width	36 mm
