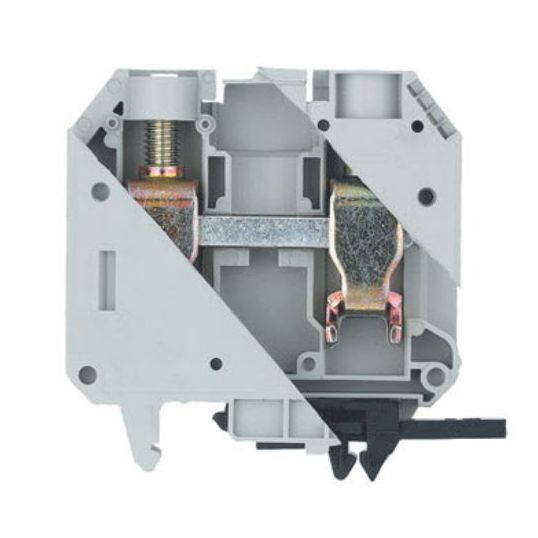

Edward Keller Rail Terminal Block Screwed 2 Wire 1 Level 35mm Grey Thermoplastic
Loading...
Description
Rail Terminal Block, 800 Volt, Rated Surge Voltage: 8 kV, 125 Amp, 35mm Conductor, 2 Conductors, Wire Strip Length: 18 mm, Tightening Torque: 3 N/m, Wiring Format: 2 Conductor Through, 1 Level, Screw Terminal, DIN Rail Mount, TS 35, TS 32 Rail, Insulation Material: Thermoplastic, Grey, Flammability: V0, Height: 75.1 mm, 63 mm Width, 16 mm Depth
Key Specifications
| SKU |
EDK57.535.0155.0
|
|---|---|
| Brand |
Edward Keller
|
| Product Type |
Rail Terminal Blocks
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 20 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 57.535.0155.0 |
| Depth | 16 mm |
| Conductor Size | 35mm |
| Current Rating | 125 Amp |
| Colour | Grey |
| Flammability | V0 |
| Height | 75.1 mm |
| Insulation Material | Thermoplastic |
| Mounting Method | DIN Rail - TS 35 - TS 32 Rail |
| Number of Conductors | 2 |
| Number of Levels | 1 |
| Terminal Type | Screw |
| Rated Surge Voltage | 8 kV |
| Tightening Torque | 3 Nm |
| Voltage Rating | 800 Volt |
| Width | 63 mm |
| Wire Strip Length | 18 mm |
| Wiring Format | 2 Conductor Through |
