IPD Fuse Link HRC Bolt In Offset 20 Amp 550VAC/250VDC 80 kA at 550VAC 40 kA at 250VAC Class gG BS88 Type A1

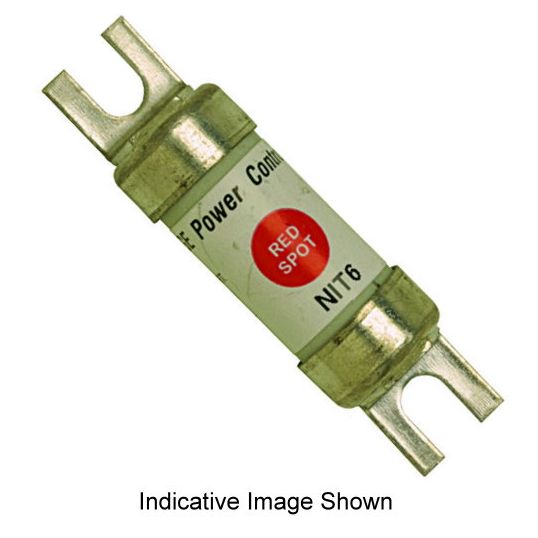

$IPD\IPD_NIT.jpg$

Description

HRC Fuse Link, 550 Volt AC/250 Volt DC, 20 Amp, 80 kA Interrupt Capacity, Class gG, 44.5 mm Fixing Centres, Bolt In Offset, 14.5 mm Diameter x 55.6 mm Length, BS88 Type A1

Key Specifications

Barcode (EAN-13)	5050096012277
SKU	EEFNIT20
Brand	IPD
Range Name	Red Spot

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	For use with RS20 and RSM32 holders Fault current limitation, distribution/cable protection, equipment/switchgear protection, motor/starter protection
Standard Pack Size	10
UNSPSC Class	39121600
UOM	EA
Vendor Product	NIT20
Dimensions	14.5 mm Diameter x 55.6 mm Length
Current	20 Amp
Fixing Centres	44.5 mm
Interrupt Capacity	80 kA
Standard Reference	BS88 Type A1
Voltage	550 Volt AC/250 Volt DC
Utilisation Category	Class gG
Tag Type	Bolt In Offset
