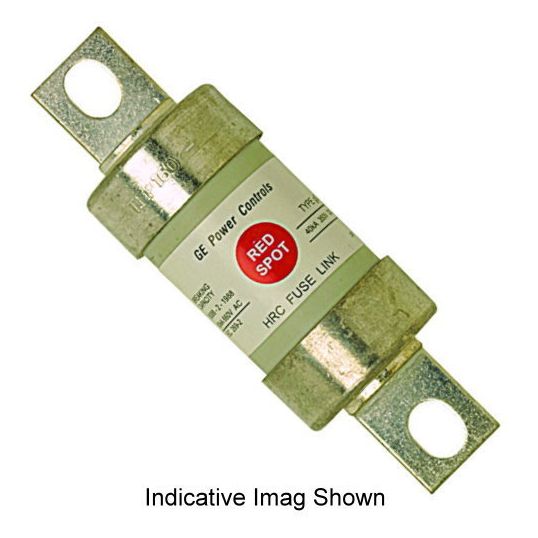

IPD HRC Fuse Link 2 Hole Fixing Bolt In Centre Motor Rated 315M355 Amp 660VAC 80 kA Class gM BS88 Type B3
Loading...
Description
Fuse Link HRC 2 Hole Fixing Bolt In Centre, 660 VAC, 315M355 Amp, Class gM, Interrupt Capacity: 80 kA, 111mm Fixing Centres, Bolt In Centre Motor Rated Tag, 52.6mm Diameter x 136.5mm Length, BS88 Type B3
Key Specifications
| Barcode (EAN-13) |
5050096003138
|
|---|---|
| SKU |
EEFTKF315M355
|
| Brand |
IPD
|
| Range Name |
Red Spot
|
| Product Type |
Fuse Links HRC
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | TKF315M355 |
| Fixing Centres | 111mm |
| Dimensions | 52.6mm Diameter x 136.5mm Length |
| Current | 355 Amp |
| Interrupt Capacity | 80 kA |
| Standard Reference | BS88 Type B3 |
| Tag Type | Bolt In Centre Motor Rated |
| Utilisation Category | Class gM |
| Voltage | 660 Volt AC |
