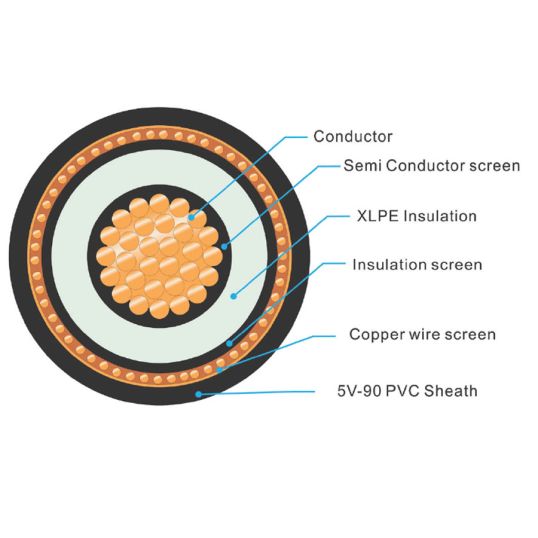

Electra 185mm Black Circular XLPE Cable Underground Distribution

Description

Circular XLPE Cable Underground Distribution, 185 mm, Compacted Stranded Annealed Copper, 6.35-11 kV, 1 Core, 16.1 mm Nominal Diameter, 33.8 mm Overall Diameter, Static 390 mm/590 mm During Installation Bend Radius, 3.4 mm Insulation Thickness, 2 mm Sheath Thickness, 13 kN Pulling Tension, DC: 0.0991 Ohm/km Conductor Resistance, X-90 XLPE Insulation, 5V-90 PVC Sheath, Black Sheath, Copper Braid Screen, 90 deg C, AS/NZS 1429.1 AS/NZS 1125-Class 2 IEC 60288 AS/NZS 3808

Key Specifications

SKU	ELC11KV1C185XLPE-BLK
Brand	Electra
Product Type	Circular XLPE Underground

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	11KV1C185XLPE-BLK
Bend Radius	Static 390 mm/590 mm During Installation
Conductor Resistance	DC: 0.0991 Ohm/km
Conductor Size	185 mm
Conductor Type	Compacted Stranded Annealed Copper
Insulation Material	X-90 XLPE
Insulation Thickness	3.4 mm
Nominal Diameter	16.1 mm
Overall Diameter	33.8 mm
Number of Cores	1 Core
Pulling Tension	13 kN
Screen Material	Copper Braid
Sheath Colour	Black
Sheath Material	5V-90 PVC
Sheath Thickness	2 mm
Standards	AS/NZS 1429.1 AS/NZS 1125-Class 2 IEC 60288 AS/NZS 3808
Temperature	90 deg C
Voltage	6.35-11 kV
