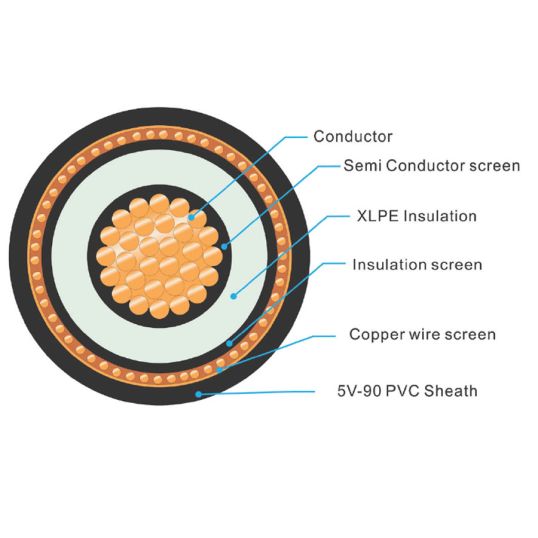

Electra Underground Distribution Cable 1 Core 95mm 6.35/11kV Copper/Copper Wire Screen/XLPE/PVC Black

Description

Circular XLPE Cable Underground Distribution, 95 mm, Compacted Stranded Annealed Copper, 6.35-11 kV, 1 Core, 11.4 mm Nominal Diameter, 28.7 mm Overall Diameter, Static 330 mm/500 mm During Installation Bend Radius, 3.4 mm Insulation Thickness, 1.8 mm Sheath Thickness, 6.7 kN Pulling Tension, DC: 0.193 Ohm/km Conductor Resistance, X-90 XLPE Insulation, 5V-90 PVC Sheath, Black Sheath, Copper Braid Screen, 90 deg C, AS/NZS 1429.1 AS/NZS 1125-Class 2 IEC 60288 AS/NZS 3808

Key Specifications

SKU	ELC11KV1C95XLPE-BLK
Brand	Electra
Product Type	Circular XLPE Underground

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	11KV1C95XLPE-BLK
Bend Radius	Static 330 mm/500 mm During Installation
Conductor Resistance	DC: 0.193 Ohm/km
Conductor Size	95 mm
Conductor Type	Compacted Stranded Annealed Copper
Insulation Material	X-90 XLPE
Insulation Thickness	3.4 mm
Nominal Diameter	11.4 mm
Overall Diameter	28.7 mm
Number of Cores	1 Core
Pulling Tension	6.7 kN
Screen Material	Copper Braid
Sheath Colour	Black
Sheath Material	5V-90 PVC
Sheath Thickness	1.8 mm
Standards	AS/NZS 1429.1 AS/NZS 1125-Class 2 IEC 60288 AS/NZS 3808
Temperature	90 deg C
Voltage	6.35-11 kV
