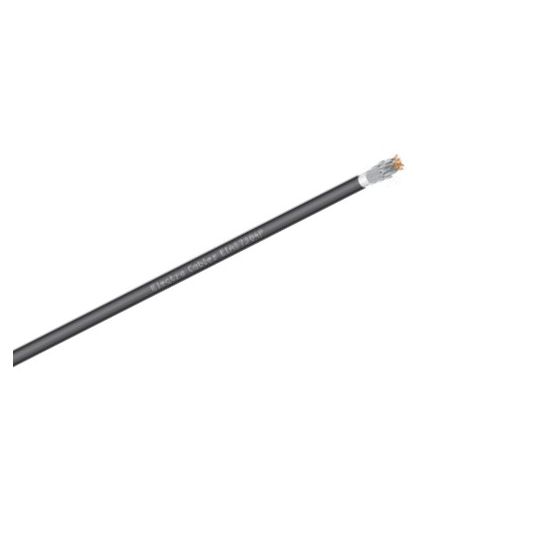

Electra 0.44mm 4 Core Instrumentation Cable Unarmoured Overall Screened

$Electra\Electra_EAS14204.jpg$

Description

Instrumentation Cable, Unarmoured, 0.44 mm, Annealed Copper, 240 Volt, 4 Core, 14/0.2 mm Strands, Overall Screened Screen, 5.4 mm Overall Diameter, 4.2 Ohm/100m Conductor Resistance, 0.3 mm Insulation Thickness, 0.8 mm Sheath Thickness, Aluminum/Polyester Mylar Tape Screen, Red/Yellow/Green/Black Core, V-75 PVC Insulation, 4V-75 PVC Sheath, Grey Sheath, AS/NZS 1125 AS/NZS 3808

Key Specifications

SKU	ELCEAS14204
Brand	Electra
Product Type	Instrumentation Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	EAS14204
Conductor Resistance	4.2 Ohm/100m
Conductor Size	0.44 mm
Conductor Type	Annealed Copper
Core Colours	Black/Red/Green/Yellow
Insulation Material	V-75 PVC
Insulation Thickness	0.3 mm
Overall Diameter	5.4 mm
Number of Pairs	4 Core
Screen Format	Overall Screened
Sheath Colour	Grey
Screen Material	Aluminium/Polyester Mylar Tape
Sheath Material	4V-75 PVC
Standards	AS/NZS 1125 AS/NZS 3808
Sheath Thickness	0.8 mm
Stranding	14/0.2 mm
Voltage	240 Volt
