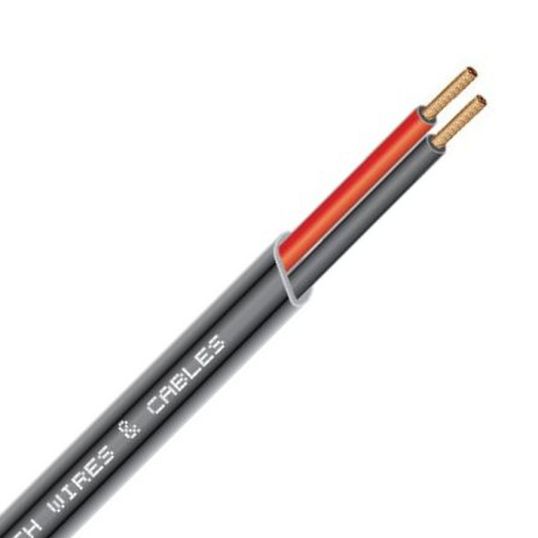

Electra Trailer Cable Double Insulated 2 Core e 1.13mm (16/0.3mm) 32/100V PVC/PVC Black

$Electra\Electra_ECA321-100M.JPG$

Description

Trailer Cable, 1.13 mm, Annealed Copper, 32 Volt AC/100 Volt DC, 9 Amp, 16/0.3 mm Strands, 3.6 mm x 6.4 mm Overall Diameter, 0.6 mm Insulation Thickness, 0.6 mm Sheath Thickness, 16.5 Ohm/km Conductor Resistance, Red/Black Core, V-75 PVC Insulation, 4V-75 PVC Sheath, Black Sheath, AS/NZS 1125 AS/NZS 3808

Key Specifications

SKU	ELCECA321-100M
Brand	Electra
Product Type	Automotive Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121800
UOM	MTR
Vendor Product	ECA321-100M
Conductor Size	1.13 mm
Conductor Resistance	16.5 Ohm/km
Core Colours	Black/Red
Conductor Type	Annealed Copper
Current	9 Amp
Insulation Material	V-75 PVC
Insulation Thickness	0.6 mm
Overall Diameter	3.6 mm x 6.4 mm
Sheath Colour	Black
Sheath Material	4V-75 PVC
Sheath Thickness	0.6 mm
Stranding	16/0.3 mm
Standards	AS/NZS 1125 AS/NZS 3808
Voltage	32 Volt AC/100 Volt DC
