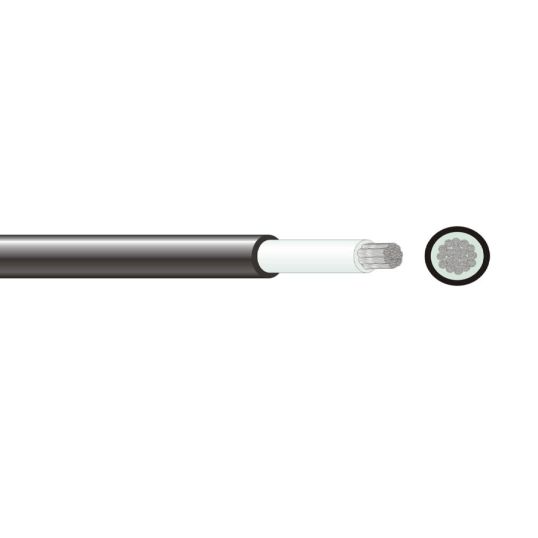

Electra Flexible Cable 1 Core 630mm 0.6/1kV Aluminium XLPE/PVC
Loading...
Description
Flexible Cable, 630 mm, Aluminium, 0.6-1 kV, 1 Core, 91/2.93 mm Strands, 46.4 mm Overall Diameter, 540 mm Bend Radius, 2 mm Insulation Thickness, 2.5 mm Sheath Thickness, X-90 XLPE Insulation, Natural Insulation, 5V-90 PVC Sheath, Black Sheath, 90 deg C, AS/NZS 1125
Key Specifications
| SKU |
ELCFALX16300
|
|---|---|
| Brand |
Electra
|
| Product Type |
Flexible Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121500 |
| UOM | MTR |
| Vendor Product | FALX16300 |
| Bend Radius | 540 mm |
| Conductor Size | 630 mm |
| Conductor Type | Aluminium |
| Insulation Colour | Natural |
| Insulation Material | X-90 XLPE |
| Insulation Thickness | 2 mm |
| Number of Cores | 1 Core |
| Overall Diameter | 46.4 mm |
| Sheath Colour | Black |
| Sheath Thickness | 2.5 mm |
| Sheath Material | 5V-90 PVC |
| Standards | AS/NZS 1125 |
| Temperature | 90 deg C |
| Stranding | 91/2.93 mm |
| Voltage | 0.6-1 kV |
Downloads
