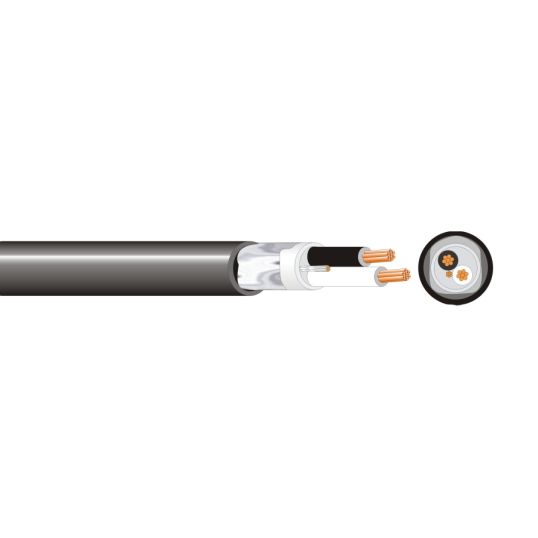

Electra Feeder Cable 1 Pair 1.5mm Copper LDPE/PVC Black

Description

Feeder Cable, 1.5 mm, Tinned Annealed Copper, 1 Pair, 7/0.5 mm Strands, 7.4 mm +/-10% Overall Diameter, 0.5 mm Insulation Thickness, 1.8 mm Sheath Thickness, 100% Screen Coverage, Aluminium Tape Screen, Black/White Core, LDPE Insulation, 5V-90 PVC Sheath, Black Sheath, AS/NZS 2276.2 AS/NZS 1125

Key Specifications

SKU	ELCFD7501P-BLK
Brand	Electra
Product Type	Feeder Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	FD7501P-BLK
Conductor Size	1.5 mm
Conductor Type	Tinned Annealed Copper
Core Colours	Black/White
Insulation Material	LDPE
Insulation Thickness	0.5 mm
Number of Pairs	1 Pair
Overall Diameter	7.4 mm +/-10%
Screen Material	Aluminium Tape
Screen Coverage	100%
Sheath Colour	Black
Sheath Material	5V-90 PVC
Sheath Thickness	1.8 mm
Standards	AS/NZS 2276.2 AS/NZS 1125
Stranding	7/0.5 mm
