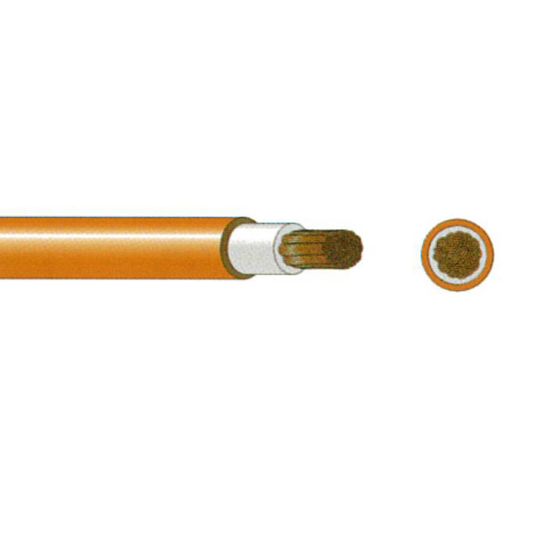

Electra Flexible Cable 1 Core 35mm 0.6/1kV Copper X-HF-110/HFS-110-TP Orange
Loading...
Description
Flexible Cable, 35 mm, Annealed Copper, 0.6-1 kV, 1 Core, 1026/0.192 mm Strands, 12.9 mm Overall Diameter, 90 mm During Installation/60 mm After Installation Bend Radius, 0.9 mm Insulation Thickness, 1.4 mm Sheath Thickness, LSRFLEX X-HF-110 Cross Linked Thermoset LSHF Elastomeric Insulation, LSRFLEX HFS-110-TP Sheath, Orange Sheath, -40 to 110 deg C, AS/NZS 1660.5.3 AS/NZS 1125 IEC 62930 AS/NZS 3808
Key Specifications
| SKU |
ELCFLS1350
|
|---|---|
| Brand |
Electra
|
| Product Type |
Flexible Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121500 |
| UOM | MTR |
| Vendor Product | FLS1350 |
| Bend Radius | 90 mm During Installation - 60 mm After Installation |
| Conductor Size | 35 mm |
| Conductor Type | Annealed Copper |
| Insulation Material | LSRFLEX X-HF-110 Cross Linked Thermoset LSHF Elastomeric |
| Insulation Thickness | 0.9 mm |
| Number of Cores | 1 Core |
| Overall Diameter | 12.9 mm |
| Sheath Colour | Orange |
| Sheath Thickness | 1.4 mm |
| Sheath Material | LSRFLEX HFS-110-TP |
| Standards | AS/NZS 1660.5.3 AS/NZS 1125 IEC 62930 AS/NZS 3808 |
| Temperature | -40 to 110 deg C |
| Stranding | 1026/0.192 mm |
| Voltage | 0.6-1 kV |
