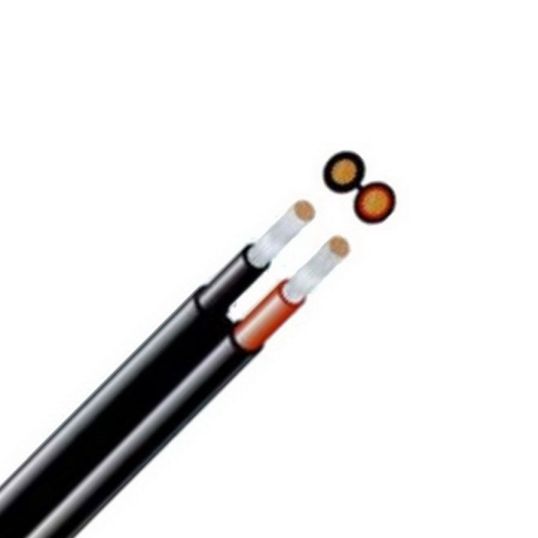

Electra Solar Cable 2 Core 4mm 0.6/1kV XLPE/XLPE Black 100mtr

Description

Solar Cable, 0.6-1 kV AC/1.8 kV DC, 4 mm, 2 Core, 56/0.3 mm Strands, 5.09 mm Overall Diameter, 0.9 mm Insulation Thickness, 0.8 mm Sheath Thickness, Tinned Copper Conductor, Electron Beam XLPE Insulation, UV Resistant XLPE Sheath, Black Sheath, -40 to 90 deg C, AS/NZS 5033.2012, PV1-F of TUV 2 Pfg 1169/08.2007

Key Specifications

SKU	ELCPV56032-100BLK
Brand	Electra
Product Type	Solar Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	These may be installed as free moving, fixed or hanging -they can also be installed in cable trays, conduits, on or in walls
Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	PV56032-100BLK
Conductor Material	Tinned Copper
Conductor Size	4 mm
Insulation Material	Electron Beam XLPE
Insulation Thickness	0.9 mm
Number of Cores	2 Core
Overall Diameter	5.09 mm
Sheath Colour	Black
Sheath Material	UV Resistant XLPE
Sheath Thickness	0.8 mm
Standards	AS/NZS 5033.2012 PV1-F of TUV 2 Pfg 1169/08.2007
Stranding	56/0.3 mm
Temperature	-40 to 90 deg C
Voltage	0.6-1 kV AC/1.8 kV DC
