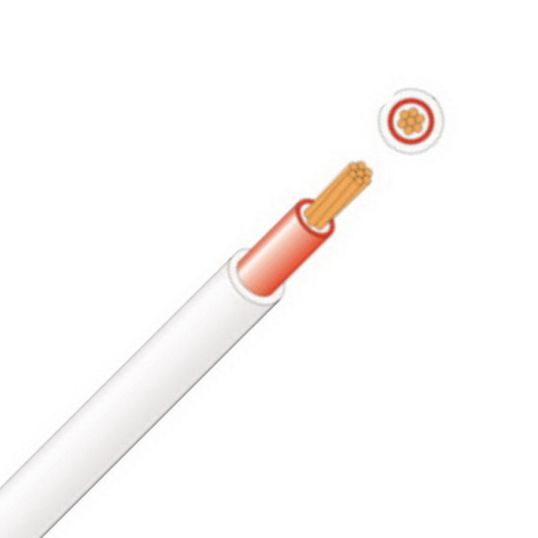

SDI 1 Core 1x7/0.5 1.5mm PVC/PVC Red Core White 450/750V

Electra 1.5mm Single Core Double Insulated Cable Red Core White Sheath 100mtr


Std Pack Size

You need to be registered and logged in to view product details and pricing

Single Core Double Insulated Cable, 1.5 mm, Plain Annealed Copper, 450/750 Volt, 1x7/0.5 mm Strands, 4.5 mm Overall Diameter, 20 mm Bend Radius, 0.6 mm Insulation Thickness, 0.8 mm Sheath Thickness, Conductor Resistance: DC: 13.6 Ohm/km, AC: 16.5 Ohm/km, V-90 PVC Insulation, 3V-90 PVC Sheath, Red Core, White Sheath, 90 deg C, AS/NZS 5000.2

Additional Information

Additional Information
Brand Electra
Standard Pack Size 100
UNSPSC Class 26121600
Vendor Product SDI1015V-RD/WH
Bend Radius 20 mm
Conductor Resistance DC: 13.6 Ohm/km AC: 16.5 Ohm/km
Conductor Type Plain Annealed Copper
Core Colour Red
Insulation Material V-90 PVC
Insulation Thickness 0.6 mm
Overall Diameter 4.5 mm
Product Type Power Cable
Sheath Material 3V-90 PVC
Sheath Colour White
Standards AS/NZS 5000.2
Temperature 90 deg C
Sheath Thickness 0.8 mm
Stranding 1x7/0.5 mm
Voltage 450-750 Volt
Conductor Size 1.5 mm
Number of Cores 1
