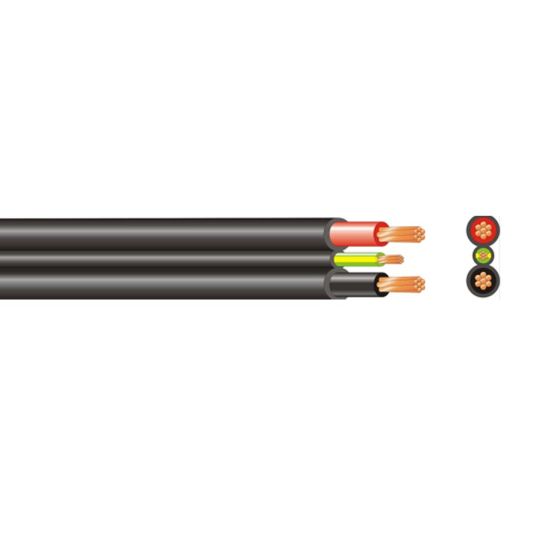

Electra 1.5mm Flat TPS Cable Black/Red/Green/Yellow 1mtr

Description

Flat TPS Cable, 1.5 mm, Annealed Copper, 450-750 Volt, 2 Core + Earth, 7/0.5 mm Strands, 10 mm x 4.6 mm Overall Diameter, 1 mtr Length, Minor 20 mm Major 45 mm Bend Radius, 0.6 mm Insulation Thickness, 0.9 mm Sheath Thickness, Red/Black/Green/Yellow Core, V-90 PVC Insulation, 3V-90 PVC Easytear Sheath, Black Sheath, 75 deg C, AS/NZS 5000.2 AS/NZS 1125 AS/NZS 3808

Key Specifications

SKU	ELCSRF3015V-BLK
Brand	Electra
Product Type	Flat TPS Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	SRF3015V-BLK
Bend Radius	Minor 20 mm/Major 45 mm
Conductor Size	1.5 mm
Conductor Type	Annealed Copper
Core Colours	Black/Red/Green/Yellow
Insulation Material	V-90 PVC
Insulation Thickness	0.6 mm
Number of Cores	2 Core + Earth
Overall Diameter	10 mm x 4.6 mm
Sheath Colour	Black
Sheath Material	3V-90 PVC Easytear
Standards	AS/NZS 5000.2 AS/NZS 1125 AS/NZS 3808
Sheath Thickness	0.9 mm
Stranding	7/0.5 mm
Temperature	75 deg C
Voltage	450-750 Volt
