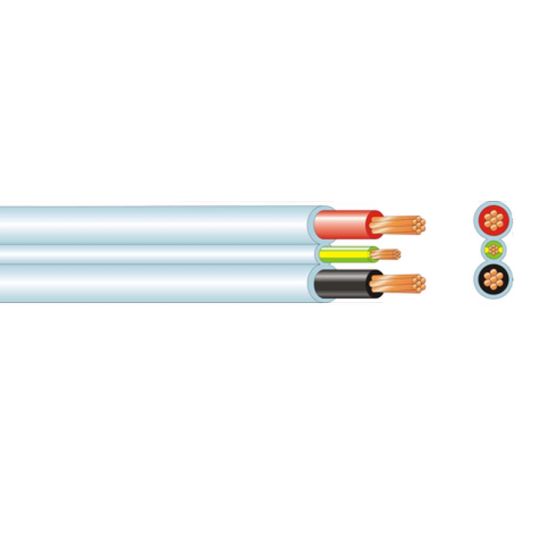

Electra 4mm Flat TPS Cable 100mtr

Description

Flat TPS Cable, 4 mm, Annealed Copper, 450-750 Volt, 2 Core + Earth, 7/0.85 mm + 7/0.67 mm Earth Strands, 14 mm x 6.5 mm Overall Diameter, 100 mtr Length, Minor 30 mm Major 60 mm Bend Radius, 0.8 mm Insulation Thickness, 1.1 mm Sheath Thickness, DC: 4.61 Ohm/km AC: 5.61 Ohm/km Conductor Resistance, V-90 PVC Insulation, 3V-90 PVC Sheath, White Sheath, 90 deg C, AS/NZS 5000.2 AS/NZS 1125 AS/NZS 3808

Key Specifications

SKU	ELCSRF3040V-LS
Brand	Electra
Product Type	Flat TPS Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	SRF3040V-LS
Bend Radius	Minor 30 mm/Major 60 mm
Conductor Resistance	DC: 4.61 Ohm/km - AC: 5.61 Ohm/km
Conductor Size	4 mm
Conductor Type	Annealed Copper
Insulation Material	V-90 PVC
Insulation Thickness	0.8 mm
Number of Cores	2 Core + Earth
Overall Diameter	14 mm x 6.5 mm
Sheath Colour	White
Sheath Material	3V-90 PVC
Standards	AS/NZS 5000.2 AS/NZS 1125 AS/NZS 3808
Sheath Thickness	1.1 mm
Stranding	7/0.85 mm + 7/0.67 mm Earth
Temperature	90 deg C
Voltage	450-750 Volt
