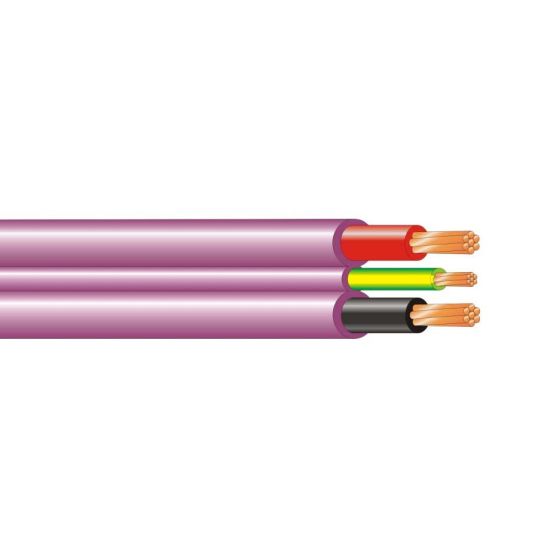

Electra 4mm Flat TPS Cable 1mtr
Loading...
Description
Flat TPS Cable, 4 mm, Annealed Copper, 450-750 Volt, 2 Core + Earth, 7/0.85 mm Strands, 14 mm x 6.5 mm Overall Diameter, 1 mtr Length, Minor 30 mm Major 60 mm Bend Radius, 0.8 mm Insulation Thickness, 1.1 mm Sheath Thickness, V-90HT PVC Insulation, V-90HT PVC Sheath, Purple Sheath, 75 deg C, AS/NZS 5000.2 AS/NZS 1125 AS/NZS 3808
Key Specifications
| SKU |
ELCSRF3040VHT-PPL
|
|---|---|
| Brand |
Electra
|
| Product Type |
Flat TPS Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | SRF3040VHT-PPL |
| Bend Radius | Minor 30 mm/Major 60 mm |
| Conductor Size | 4 mm |
| Conductor Type | Annealed Copper |
| Insulation Material | V-90HT PVC |
| Insulation Thickness | 0.8 mm |
| Number of Cores | 2 Core + Earth |
| Overall Diameter | 14 mm x 6.5 mm |
| Sheath Colour | Purple |
| Sheath Material | V-90HT PVC |
| Standards | AS/NZS 5000.2 AS/NZS 1125 AS/NZS 3808 |
| Sheath Thickness | 1.1 mm |
| Stranding | 7/0.85 mm |
| Temperature | 75 deg C |
| Voltage | 450-750 Volt |
