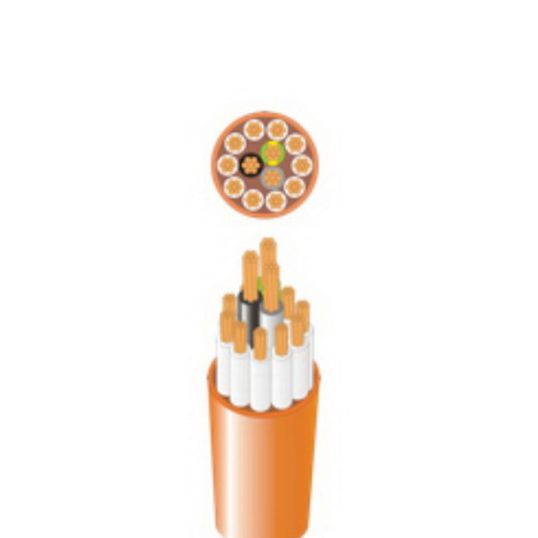

Electra Traffic Signal Control Cable 2P+E+48C 4+ 4+1.5mm 0.6/1kV PVC/PVC Orange

Description

Traffic Signal Control Cable, 4 mm Phase + 4 mm Earth + 1.5 mm Control, Annealed Copper, 0.6-1 kV, 2 Core + Earth + 48 Control, 7/0.85 mm + 7/0.85 mm Earth + 7/0.5 mm Control Strands, 32.5 mm Overall Diameter, 390 mm Bend Radius, 1 mm + 1 mm Earth + 0.8 mm Control Insulation Thickness, 4.61 Ohm/km + 4.61 Ohm/km Earth + 13.6 Ohm/km Control Conductor Resistance, Black/Grey/Green/Yellow/White Numerals Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 2276.1:2004 NSW RTA AS/NZS 1125

Key Specifications

SKU	ELCTSCC51C
Brand	Electra
Product Type	Traffic Signal Control Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	TSCC51C
Bend Radius	390 mm
Core Colours	Black/Grey/Green/Yellow/White Numerals
Conductor Resistance	4.61 Ohm/km + 4.61 Ohm/km Earth + 13.6 Ohm/km Control
Conductor Type	Annealed Copper
Conductor Size	4 mm Phase + 4 mm Earth + 1.5 mm Control
Insulation Material	V-90 PVC
Insulation Thickness	1 mm + 1 mm Earth + 0.8 mm Control
Overall Diameter	32.5 mm
Sheath Material	5V-90 PVC
Sheath Colour	Orange
Stranding	7/0.85 mm + 7/0.85 mm Earth + 7/0.5 mm Control
Temperature	90 deg C
Standards	AS/NZS 2276.1:2004 NSW RTA AS/NZS 1125
Voltage	0.6-1 kV
