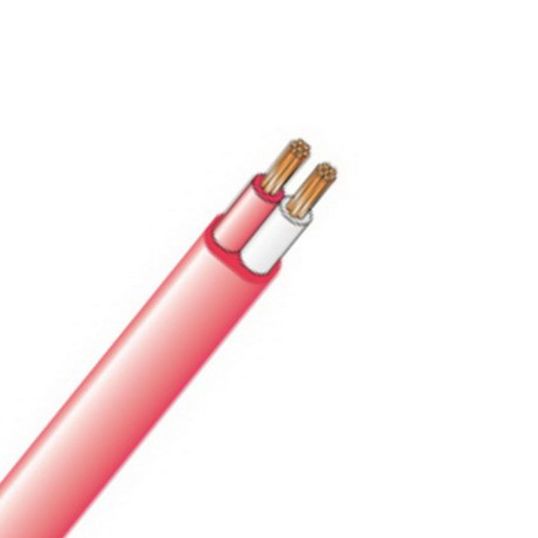

Electra 1.5mm Flat TPS Cable Fire Control Light Duty Red/White 200mtr

Description

Flat TPS Cable Fire Control Light Duty, 1.5 mm, Annealed Copper, 250 Volt, 15 Amp, 2 Core, 2x7/0.5 mm Strands, 4.9 mm x 7.5 mm Overall Diameter, 200 mtr Length, 0.6 mm Insulation Thickness, 1.1 mm Sheath Thickness, DC: 13.6 Ohm/km Conductor Resistance, Red/White Core, V-75 PVC Insulation, V-75 PVC Sheath, Red/White Trace Sheath, AS/NZS 3013 2005(WSX1l) AS/NZS 1125 IEC 60228 AS/NZS 3808, Printing LV

Key Specifications

SKU	ELCXFC7502-LD-200
Brand	Electra
Product Type	Fire Control Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	200
UNSPSC Class	26121600
UOM	MTR
Vendor Product	XFC7502-LD-200
Conductor Type	Annealed Copper
Conductor Resistance	DC: 13.6 Ohm/km
Core Colours	Red/White
Current	15 Amp
Insulation Material	V-75 PVC
Insulation Thickness	0.6 mm
Overall Diameter	4.9 mm x 7.5 mm
Please Note	Printing LV
Sheath Material	V-75 PVC
Sheath Thickness	1.1 mm
Sheath Colour	Red/White Trace
Standards	AS/NZS 3013 2005(WSX1l) AS/NZS 1125 IEC 60228 AS/NZS 3808
Stranding	2x7/0.5 mm
Voltage	250 Volt
Conductor Size	1.5 mm
Number of Cores	2 Core
