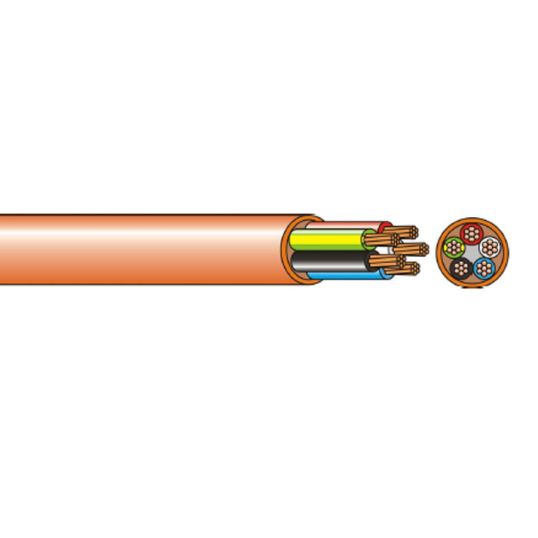

Electra Circular Power Cable Unarmoured 4 Core & Earth 10mm 0.6/1kV Plain Annealed Copper XLPE/PVC Orange
Loading...
Description
Electra Circular Power Cable Unarmoured, 10 mm, Annealed Copper, 0.6-1 kV, 4 Core + Earth, 13.7 mm Overall Diameter, 0.7 mm Insulation Thickness, 0.7 mm Sheath Thickness, Red/Black/White/Blue/Green/Yellow Core, X-90 XLPE Insulation, 5V-90 PVC Sheath, Black Sheath, 90 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 AS/NZS 4026
Key Specifications
| SKU |
ELCXLPE4100E
|
|---|---|
| Brand |
Electra
|
| Product Type |
Flexible Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | XLPE4100E |
| Conductor Size | 10 mm |
| Conductor Type | Annealed Copper |
| Core Colours | Red/Black/White/Blue/Green/Yellow |
| Insulation Material | X-90 XLPE |
| Insulation Thickness | 0.7 mm |
| Number of Cores | 4 Core + Earth |
| Overall Diameter | 13.7 mm |
| Sheath Colour | Black |
| Sheath Material | 5V-90 PVC |
| Sheath Thickness | 0.7 mm |
| Standards | AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 AS/NZS 4026 |
| Temperature | 90 deg C |
| Voltage | 0.6-1 kV |
