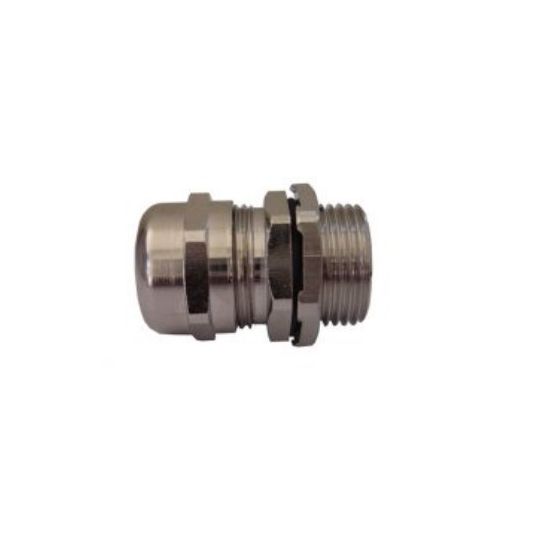

Elmako Metal Cable Gland Unarmoured EMC VSD Screened Cable M50 22-32mm Nickel Plated Brass with Lock Nut IP68

chevron-left
loader
Loading...

Description

chevron-down
Metal Cable Gland, Unarmoured, EMC VSD Screened Cable, M50, 22 mm Min. Sheath OD, 32 mm Max. Sheath OD, 55 mm Width Across Flats, IP68, Neoprene Seal, Brass Body, Nickel Plated Finish, -40 to 100 deg C

Key Specifications

chevron-down
Barcode (EAN-13)
9328587021838
SKU
ELMEMC50
Brand
Elmako
Product Type
Cable Glands Unarmoured

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Indoor or outdoor use
  • Provides water tight seal on cable sheath and secures and connects outer braid
  • NBR O-ring
Standard Pack Size 1
UNSPSC Class 39121400
UOM EA
Vendor Product EMC50
Finish Nickel Plated
IP Rating IP68
Body Material Brass
Max. Sheath OD 32 mm
Min. Sheath OD 22 mm
Temperature -40 to 100 deg C
Seal Material Neoprene
Thread Size M50
Width Across Flats 55 mm
