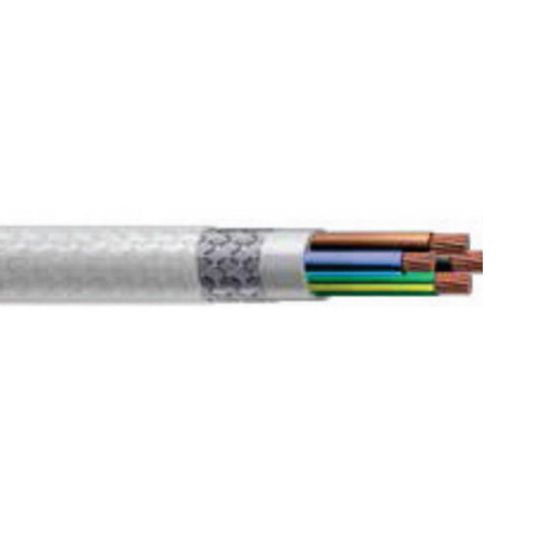

Elcon Flexible Cable VSD EMC Screened Heavy Duty 2 Core & Earth 1.5 mm 0.6/1kV PVC/Tinned Copper Braid/PVC Clear

$Elcon\Elcon_CE-EMC3G_CE-EMC4G.jpg$

Description

VSD/EMC Cable, 1.5 mm, Class 5 Annealed Copper, 0.6-1 kV, 17 Amp, 2 Core + Earth, 11.3 mm Overall Diameter, 1.5 mm Earth Conductor, 67.8 mm Bend Radius, 0.8 mm Insulation Thickness, 1.8 mm Sheath Thickness, DC: 19.5 MOhm/m Insulation Resistance, 80% Screen Coverage, Tinned Copper Braid Screen, Brown/Blue/Green/Yellow Core, V-75 PVC Insulation, 4V-75 PVC Sheath, Clear Sheath, 75 deg C, RoHS

Key Specifications

SKU	ELNCE-EMC3G1.5KM
Brand	Elcon Cables
Product Type	VSD/EMC Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	RoHS complaint
Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	CE-EMC3G1.5KM
Bend Radius	67.8 mm
Conductor Size	1.5 mm
Conductor Type	Class 5 Annealed Copper
Core Colours	Brown/Blue/Green/Yellow
Current	17 Amp
Earth Conductor Size	1.5 mm
Insulation Resistance	DC: 19.5 MOhm/m
Insulation Material	V-75 PVC
Insulation Thickness	0.8 mm
Number of Cores	2 Core + Earth
Overall Diameter	11.3 mm
Screen Coverage	80%
Screen Material	Tinned Copper Braid
Sheath Colour	Clear
Sheath Material	4V-75 PVC
Sheath Thickness	1.8 mm
Standards	RoHS
Temperature	75 deg C
Voltage	0.6-1 kV
