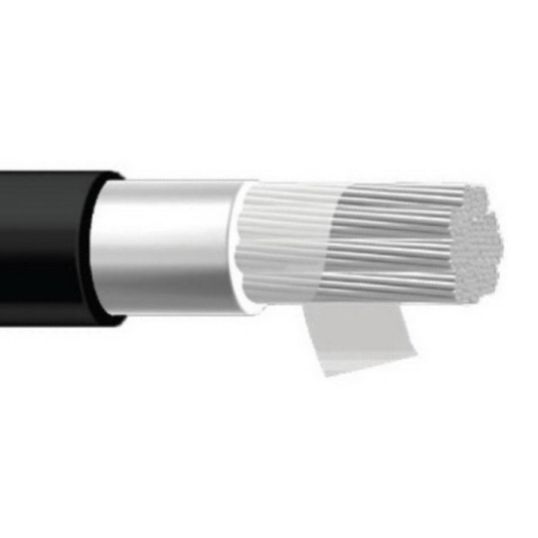

Elcon Cables 10mm SDI Cable 100mtr

$Elcon\Elcon_CR-SDI.jpg$

Description

Flexible Power Cable, Double Insulated, Heavy Duty, 1 Core, 10 mm, Tinned Annealed Copper, 1.9/3.3 kV, 99 Amp, 77/0.41 mm Strands, 10 mm Overall Diameter, Bend Radius: Static - 40 mm Flexible - 50 mm, 1.5 mm Insulation Thickness, 0.8 mm Sheath Thickness, Insulation Resistance: DC - 1.95 MOhm/m, 3GI3 Special EPR Compound Insulation, 5GM3 PCP Rubber Sheath, Black Sheath, -25 to 110 deg C

Key Specifications

SKU	ELNCR-SDI10B3.3KVM
Brand	Elcon Cables

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Excellent flexibility Flame Retardant and Submersible to 100m UV, Sunlight, Ozone, Oil Resistant
Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	CR-SDI10B3.3KVM
