Elcon Cables DC Figure 8 Solar Cable 120 Core 10mm 1.5-1.5kV Black 100mtr

$Elcon\ElconCables_ENF8TUV10B.jpg$

Description

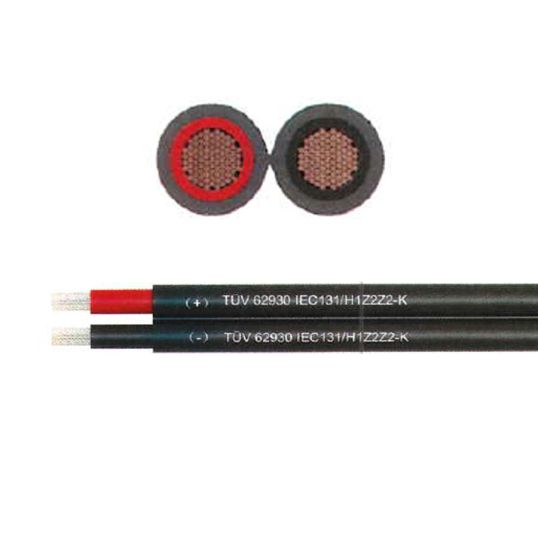

Solar Cable Figure 8 DC, 0.9-1.8 kV DC/0.6-1 kV AC, 10 mm, 120 Core, 6.7 mm x 13.8 mm Overall Diameter, Tinned Copper Conductor, Red/Black Core, Electron Beam Cross Linked Compound Insulation, Electron Beam Cross Linked Compound Sheath, Black Sheath, 120 deg C

Key Specifications

SKU	ELNENF8TUV10B100M
Brand	Elcon Cables

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Excellent flexibility, Ezi tear webbing Flame retardant, 120 deg C low smoke zero halogen UV stabilised TUV Rhineland approved Metre marked Compact design
Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	ENF8TUV10B100M
Conductor Size	10 mm
Conductor Material	Tinned Copper
Core Colours	Black/Red
Insulation Material	Electron Beam Cross Linked Compound
Number of Cores	120 Core
Overall Diameter	6.7 mm x 13.8 mm
Sheath Colour	Black
Sheath Material	Electron Beam Cross Linked Compound
Voltage	0.9-1.8 kV DC/0.6-1 kV AC
Temperature	120 deg C
