Elcon Cables 2.5 mm Shot Fire Cable V-90HT PVC/3V-90 PVC Yellow 100mtr

Description

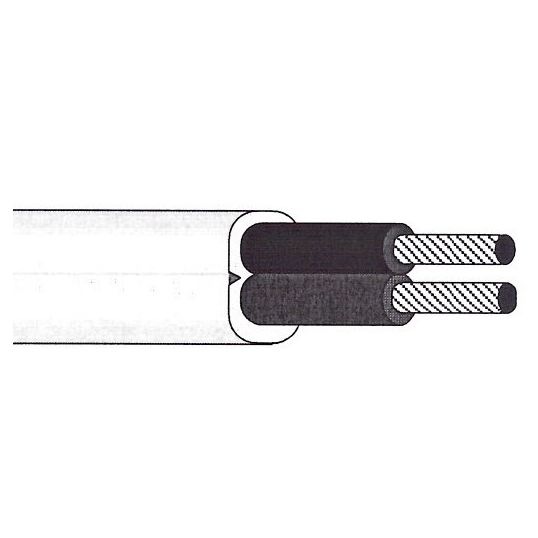

Shot Fire Cable, 2.5 mm, Copper, 2 Core, 50/0.25 mm Strands, 7 mm x 0.6 mm Overall Diameter, 100 mtr Length, 0.8 mm Insulation Thickness, 1.6 mm Sheath Thickness, Red/Black Core, V-90HT PVC Insulation, 3V-90 PVC Sheath, Yellow Sheath, AS/NZS 3808 AS/NZS 1125

Key Specifications

SKU	ELNETS250025-YW-100
Brand	Elcon Cables
Product Type	Shot Fire Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	ETS250025-YW-100
Conductor Size	2.5 mm
Conductor Type	Copper
Core Colours	Red/Black
Insulation Material	V-90HT PVC
Insulation Thickness	0.8 mm
Number of Cores	2 Core
Overall Diameter	7 x 0.6 mm
Sheath Colour	Yellow
Sheath Material	3V-90 PVC
Standards	AS/NZS 3808 AS/NZS 1125
Sheath Thickness	1.6 mm
Stranding	50/0.25 mm
