Enphase IQ Battery 5kWh 230V 1/3Ph IP55 W/FlexPh Kit 0.96 6000 Charge: -20 to 50deg C/Discharge: -20 to 55deg C 15Years

Name: IQ Battery 5kWh 230V 1/3Ph IP55 W/FlexPh Kit
SKU: ENPIQBATTERY5P3PINT
Availability: InStock

$Enphase\Enphase_ENPIQBATTERY5P3PINT.JPG$

Description

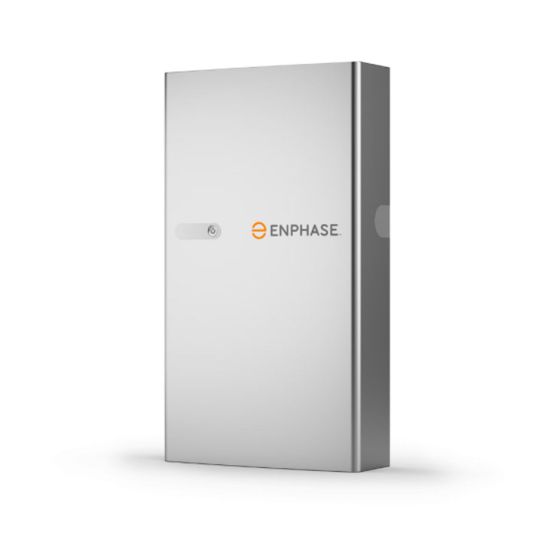

As an all-in-one, AC-coupled storage system, the IQ battery 5P with FlexPhase is the most versatile and powerful battery offering yet. It can be used for single-phase installations and three-phase installations, in a grid-tied or backup configuration, enabling you to create the perfect solution to match your energy needs. It has a total usable energy capacity of 5 kWh, features six embedded grid-forming microinverters, and has a continuous output power rating of up to 3.84 kVA.

Key Specifications

SKU	ENPIQBATTERY5P3PINT
Brand	Enphase

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Fully integrated AC battery system Six embedded IQ8D-BAT microinverters Field-replaceable components Stable lithium iron phosphate (LFP) chemistry for maximum safety and longevity Cools passively with no moving parts or fans Uses wired communication for fast and consistent connection
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	IQBATTERY-5P-3P-INT
Ambient Temperature	Charge:-20 to 50 deg C/Discharge:-20 to 55 deg C
Capacity (kWh)	5 kWh
Certifications	IEC 61683 / IEC 60068-2-1 / IEC 60068-2-2 / IEC 60068-2-14 / IEC 60068-2-30 / IEC 61727
Depth	188 mm
Efficiency	96%
Height	980 mm
Item Weight	83 kg
IP Rating	IP55
Phase	1/3 Phase
Please Note	With FlexPhase Kit
Recharge Cycles	6000
Voltage	230 Volt
Warranty	15 Years
Width	550 mm
