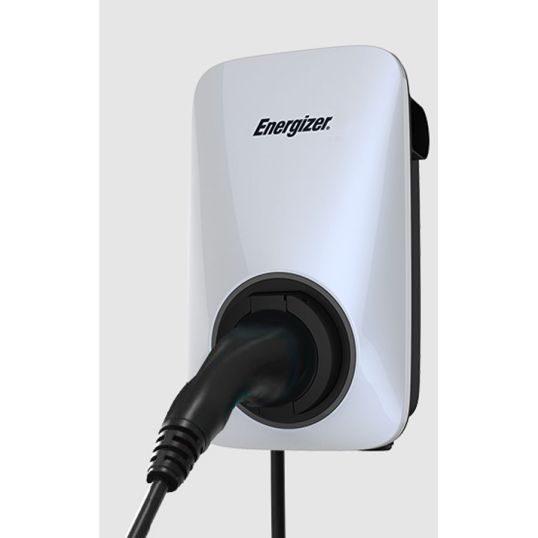

Energizer AC Electric Vehicle Charger 22kW 400V 32A 3Ph Type 2 Cable 5m IP55 Silver 400VAC 32A 50/60Hz 2000m IK08 5-95%

$EnergizerSolar\EnergizerSolar_ENEVA22C022AUSI.jpg$

Description

The Energizer Solar EV charger adopts a streamlined and simple design, which is more refined and technology advanced. Through the App, the car owner can choose the Bluetooth smart lock, timing charging function, or modify it to plug and play mode. At the same time, it can monitor charging information, set EV charger parameters, bind equipment and authorization, and upgrade remote software.

Key Specifications

SKU	ENSENEVA22C022AUSI
Brand	Energizer
Range Name	EV Charger
Product Type	AC Electric Vehicle Charger

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	3 year warranty
Standard Pack Size	1
UNSPSC Class	25175000
UOM	EA
Vendor Product	ENEVA22C022AUSI
Certifications	CE / ISO
Communication Protocol	OCPP 1.6 JSON / OCPP 2.0
Connector Type	Type 2 Cable
Cord Length	5 mtr
IK Rating	IK08
Input Current	32 Amp
Input Frequency	50/60 Hz
IP Rating	IP55
Input Voltage	400 Volt AC
Item Weight	8.8 kg
Max. Operating Altitude	<2000 mtr
Operating Temperature	-25 to 50 deg C
Output Voltage	400 Volt AC
Output Current	32 Amp
Phase	3 Phase
Please Note	Color: Silver
Power Output	22 kW
Relative Humidity	5-95%
Standards	EN / IEC 61851-1: 2019 / EN / IEC 61851-21-2: 2021 / IEC 14443 A
Wireless Technology	Plug&Play / RFID / App / 4G
