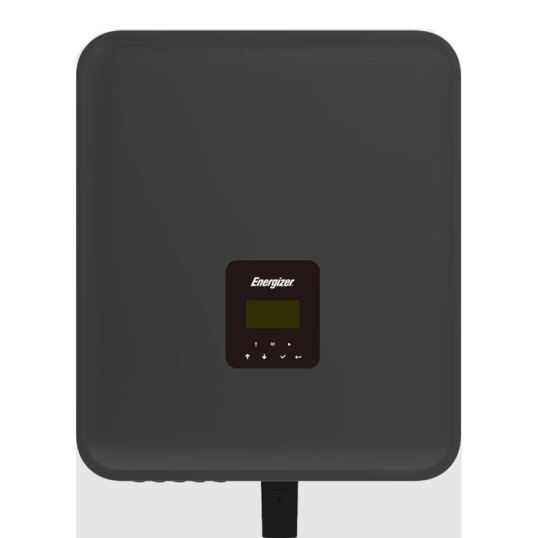

Energizer Solar Force 6.0HT 6kW PV grid-tied Three phase hybrid inverter + Wi-Fi module with dual MPPTs

$EnergizerSolar\EnergizerSolar_ENHI060TAUBLP.jpg$

Description

The Energizer Force HT Series inverter range offers advanced features and is compatible with high-voltage batteries. With the hybrid inverter range, you're able to expand your solar system by adding extra batteries. There are 5 inverter size options and it can connect to our Powerstack with up to seven battery modules connected in series, allowing for flexible storage capacity.

Key Specifications

SKU	ENSENHI060TAUBLP
Brand	Energizer
Range Name	Inverter
Product Type	Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Dual-MPPT design with precise MPPT algorithm From 97.2% maximum efficiency Optional export control Compact and lightweight Wide voltage range/low start-up voltage Android and iPhone apps available
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	ENHI060TAUBLP
AC Max. Apparent Power	6600 VA
AC Nominal Voltage	380 / 220 / 400 / 230 / 415 / 240 Volt 3L/N/PE
AC Operating Frequency	50/60 Hz
AC Output Current	10 Amp
AC Output Power	12000 VA
Battery	180-600 Volt Lithium
Communication Port	2 x RS485 / DRM / Ripple Control / USB
Cooling Method	Natural
DC Input Power	4500 Watt
DC Input Voltage	1000 Volt
DC MPPT Voltage Range	160-950 Volt
DC Max. Input Current	14 Amp
DC Nominal Voltage	720 Volt
DC Start-up Voltage	160 Volt
DC Switch	Yes
Depth	198 mm
Display Type	LCD / App / Website
Efficiency	97.80%
IP Rating	IP65
Height	519 mm
European Weighted Efficiency	97.20%
Max. Operating Altitude	2000 mtr
Noise Level	<35 dB
Mounting Method	Wall
Number of MPPTs	2
Phase	3 Phase
Operating Temperature	-25 to 60 deg C
Power Factor	1 (Adjustable from 0.8 Leading-0.8 Lagging)
Relative Humidity	0-100%
Topology	Transformerless
Width	449 mm
