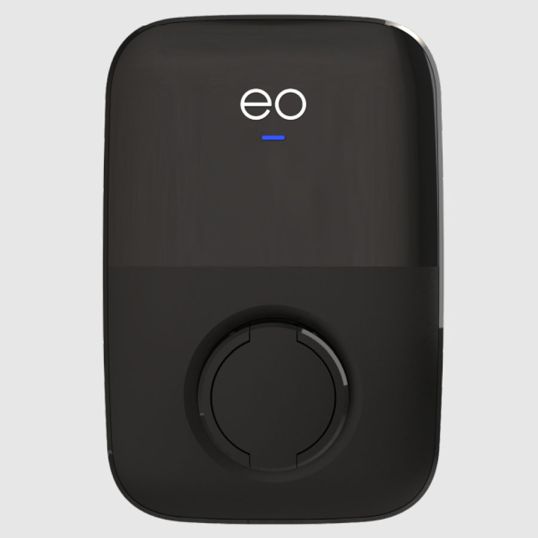

Commercial Charger - EO Genius 2 (7kW) - socket(GSM-PLC)
Loading...
Description
EO EG201-PME-DCL-GSM GENIUS 2 EV CHARGER 7.2KW 1PHASE OCPP 1.6, RFID, GSM
Key Specifications
| SKU |
EOCEG201-DCL
|
|---|---|
| Brand |
EO
|
| Range Name |
Business
|
| Product Type |
AC Electric Vehicle Charger
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 25175000 |
| UOM | EA |
| Vendor Product | EG201-DCL |
| Communication Protocol | WiFi/Cat 5 Ethernet/Bluetooth/4G Cellular |
| Connector Type | Type 2 |
| Depth | 13 cm |
| IK Rating | IK08 |
| Height | 33 cm |
| Input Current | 6-32 Amp |
| Input Voltage | 230 Volt |
| Input Frequency | 50 Hz |
| IP Rating | IP66 |
| Item Weight | 4 kg w/out cable |
| Phase | 1 Phase |
| Operating Temperature | -25 to 70 deg C |
| Power Output | 7 kW |
| Storage Temperature | -30 to 55 deg C |
| Width | 22 cm |
| Wireless Technology | 4G |
