Description

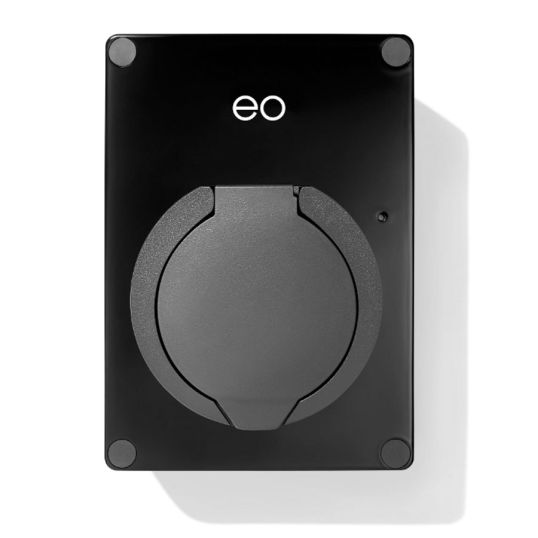

Home Charger - EO MP2 (7kW) - socket
Key Specifications
| SKU |
EOCEM201-PRO-DCL
|
|---|---|
| Brand |
EO
|
| Range Name |
Home
|
| Product Type |
EV Charger
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 25175000 |
| UOM | EA |
| Vendor Product | EM201-PRO-DCL |
| Connector Type | Socket |
| Depth | 100 mm |
| IK Rating | IK08 |
| Height | 215 mm |
| Input Current | 6-32 Amp |
| Input Voltage | 230 Volt |
| Input Frequency | 50 Hz |
| IP Rating | IP54 |
| Item Weight | 3 kg |
| Phase | 1 Phase |
| Operating Temperature | -10 to 50 deg C |
| Relative Humidity | 5-95% |
| Power Output | 7.2 kW |
| Standards | CE + UKCA Marked EMC Directive 2014/30/EU IEC 61851-1 IEC 61851-22 IEC 62196-1 |
| Storage Temperature | -25 to 85 deg C |
| Width | 140 mm |
