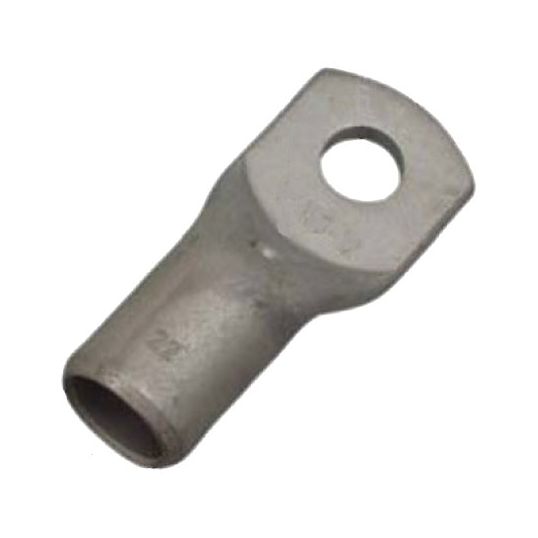

Elpress Crimp Lug Standard with Inspection Hole Copper 25mm M8 Stud 39mm OAL

$Elpress\Elpress_KRF_Crimp_Lug_Standard_Cu.jpg$

Description

Crimp Lug, Standard with Inspection Hole Copper, 25 mm Conductor, M8 Stud, Standard Barrel, 39 mm Overall Length, 1 Hole, Electrolytic Copper Body, Copper Conductor, Tin Plated Finish, Inside Diameter: 8 mm, 18 mm Lug Length, 16 mm Lug Width, A/F Hex Die: 11 mm, Crimping Die: V600,V1300, with Inspection Hole

Key Specifications

SKU	EPRKRF25-8
Brand	Elpress
Range Name	Standard Lugs Copper
Product Type	Lugs Standard Copper

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Cable inspection hole for stranded (class 2) and flexible (class 5) Cu-conductors
Standard Pack Size	100
UNSPSC Class	39121400
UOM	EA
Vendor Product	KRF25-8
A-F Hex Die	11 mm
Barrel Type	Standard
Body Material	Electrolytic Copper
Conductive Material	Copper
Conductor Size	25 mm
Crimping Die	V600V1300
Finish	Tin Plated
Inside Diameter	8 mm
Lug Length	18 mm
Lug Width	16 mm
Number of Holes	1 Hole
Overall Length	39 mm
Please Note	with Inspection Hole
Stud Size	M8 Stud
