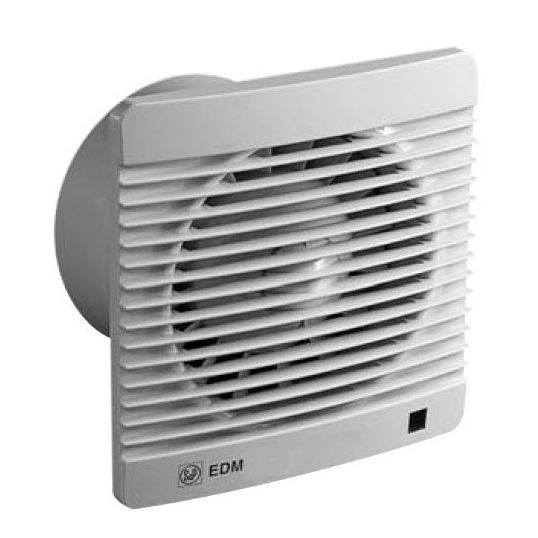

FantechTrade Exhaust Fan 100mm Low Profile 230 Volt 0.1 Amp 108 cu-m/hr 40dBA at 1.5m White

Description

Exhaust Fan, Fan Size: 100mm, 230 Volt, 0.1 Amp, Motor Wattage: 0.013 kW, 50 Hz, Phase: 1 Phase, Air Flow Rate (cu-m/hr): 108 cu-m/hr, Air Flow Rate (l/sec): 0.03 l/sec, Duct Size: 100mm, Fan Speed: 41 rps, IP44, Fan Noise: 40 dBA at 1.5m, Ceiling/Wall Mounting, Motor Type: Shaded Pole Induction, Class B, White,-40 deg C, 98mm Length, 155mm Height

Key Specifications

Barcode (EAN-13)	841389309442
SKU	FANEDM-100C
Brand	FantechTrade

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Includes a high quality mechanical backdraft shutter that prevents outside air entering building when fan is switched off The EDM-100 is also available in a 12 V model suitable for caravans and mobiles homes CT-4PL range includes 8 minute run-on timer, shutters, and 4 pin plug and lead for model EDM-200 only 12 V unit is suitable for wet areas (IPX7) requires a low voltage transformer for model EDM-100S-12 V only All models can be used to exhaust along a short length of duct It is essential allowances be made for pressure losses in the duct to ensure air flows will meet the requirements of the application 300 model features a slim line body Grille can be easily removed for cleaning All models except the EDM-100S-12 V feature a pilot lamp Class B motor, IP44 rated
Standard Pack Size	1
UNSPSC Class	40101600
UOM	EA
Vendor Product	EDM-100C
